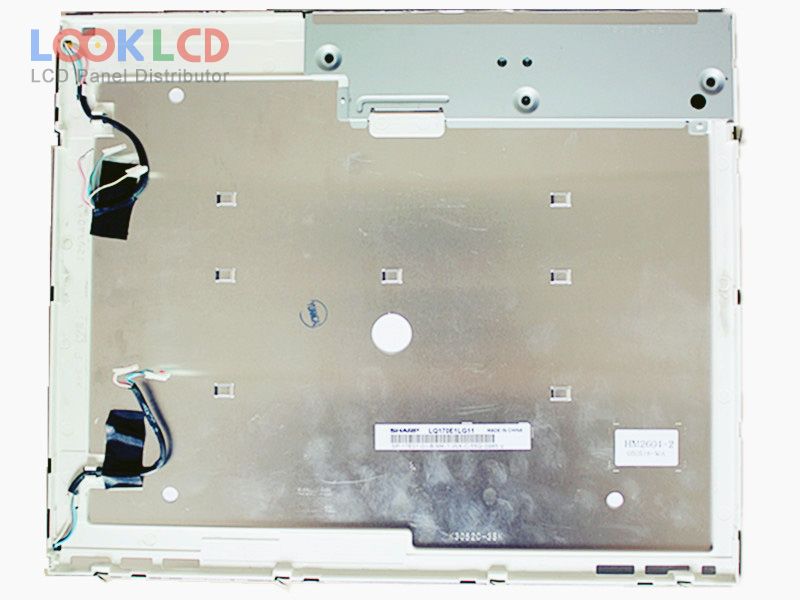

| Uimhir Pháirt | LQ170E1LG11 |
| Branda | SHARP |
| Méid | 17.0 |
| Iarratas | DMPC |
| Rún | 1280×1024 |
| Comhdhéanamh | LCM |
| Gile | 300 |
| CR | 450:1 |
| Dathanna | 16.2M |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | SHARP |
| múnla painéil | LQ170E1LG11 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 17.0 inch |
| taifeach | 1280(RGB)×1024 , SXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 337.92×270.336 mm |
| imlíne | 358.5×296.5×17.5 mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 300 cd/m² (Typ.) |
| cóimheas codarsnachta | 450:1 (Typ.) |
| dathanna a thaispeáint | 16.2M (6-bit + FRC) |
| am freagartha | 16 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 4 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (2 ch, 8-bit), 30 pins |
| voltas ionchuir | 5.0V (Typ.) |
| rohs: | |
| iarratas | DMPC |
