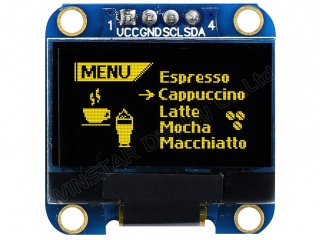

| Uimhir Pháirt | WEA012864DLPP3N00003 |
| Branda | Winstar |
| Méid | 0.96 |
| Iarratas | Instruments & Meters |
| Rún | 128×64 |
| Comhdhéanamh | OLED , PM-OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Yellow) |
| Cúlsolas | self |
| Comhéadan | 4-wire |
| monaróir | Winstar |
| méid scáileáin | 0.96 inch |
| uimhir picteilín | 128×64 149PPI |
| limistéar gníomhach(mm) | 21.74 × 10.86 (H×V) |
| limistéar bezel (mm) | 23.94 × 12.06 (H×V) |
| uillinn féachana | - |
| radharc maith ag | Symmetry |
| doimhneacht dath | Mono(Yellow) |
| mais | - |
| ráta athnuachana | - |
| Ic liosta tiománaí | Built-in COG SSD1306BZ |
| cineál comhartha | 4-wire SPI, I²C , 8 pins PIN |
| soláthar voltais | 3.3/5.0/7.5V (Typ.) |
| uas. rátálacha | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 80 °C |
| ainm samhail | WEA012864DLPP3N00003 |
| cineál scáileáin | OLED , PM-OLED |
| socrú | Rectangle |
| imlíne (mm) | 38 × 28.5 × 4.37 (H×V×D) |
| cóireáil | - |
| freagra | - |
| modh oibre | - |
| cúlsolas | self |
| a úsáidtear le haghaidh | Instruments & Meters |
| scáileán tadhaill | Without |
