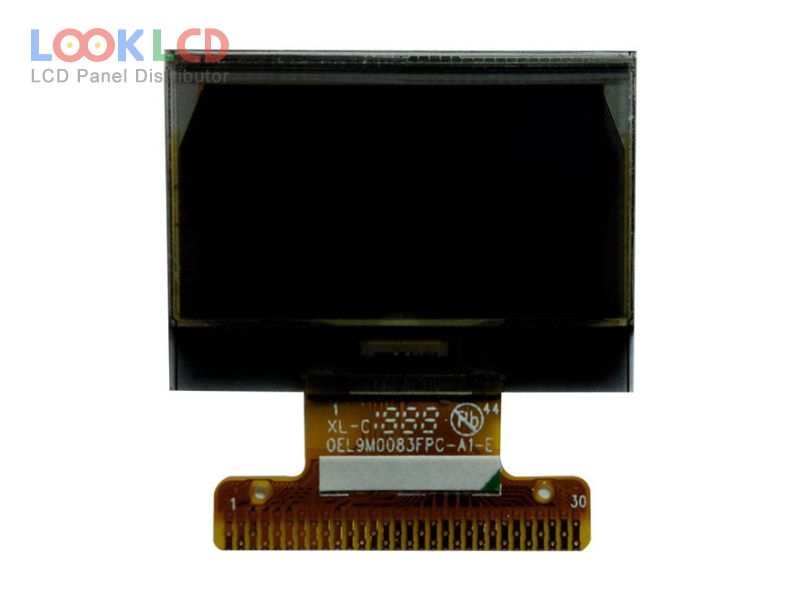

| Uimhir Pháirt | OEL9M0083-R-E |
| Branda | Other |
| Méid | 0.96 |
| Iarratas | |
| Rún | 128×64 |
| Comhdhéanamh | OLED |
| Gile | |
| CR | 10000:1 |
| Dathanna | Mono(Red) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI/I²C |
| branda painéil | TRULY |
| múnla painéil | OEL9M0083-R-E |
| cineál painéil | PM-OLED , OLED |
| méid an phainéil | 0.96 inch |
| taifeach | 128×64 |
| limistéar gníomhach | 21.74×11.175 mm |
| imlíne | 26.7×19.26×1.65 mm |
| dromchla | |
| gile | |
| cóimheas codarsnachta | 10000 : 1 (Min.) |
| dathanna a thaispeáint | Mono(Red) (1-bit) |
| uillinn féachana | 80/80/80/80 (Min.)(L/R/U/D) |
| minicíocht | 100Hz |
| Tiománaí ic | COG Built-in SH1106G |
| comhéadan comhartha | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| OEL9M0039-B-E | Other | 1.5 | 128×128 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| OEL9M0064-Y-E | Other | 2.0 | 128×32 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0078-R-E | Other | 1.45 | 132×16 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| DMC-16230NY-LY-EEE-EGN | Kyocera | 3.8 | 16×2 |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ074V3DC01 | SHARP | 7.4 | 640×480 |
| LTS200QC-F0V | Samsung | 2.0 | 176×220 |
| PA050DS2T1 | E Ink | 5.0 | 320×234 |
| PA050DS4 | E Ink | 5.0 | 320×234 |
| SC2002A | Other | 2.9 | 20×2 |
| TFD50W32-B2 | TOSHIBA | 5.0 |
