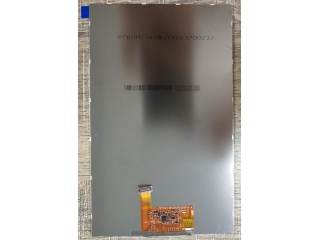

| Uimhir Pháirt | TV070WXM-NS0 |
| Branda | BOE |
| Méid | 7.0 |
| Iarratas | Pad & Tablet |
| Rún | 800×1280 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | 5S4P |
| Comhéadan | MIPI |
| monaróir | BOE |
| ainm samhail | TV070WXM-NS0 |
| méid scáileáin | 7.0 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 800(RGB)×1280 (WXGA) 215PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 94.2 × 150.72 (H×V) |
| imlíne (mm) | 99.7 × 160.93 × 3.8 (H×V×D) |
| limistéar bezel (mm) | - |
| cóireáil | Hard coating (3H), Antireflection |
| luminance | 450 cd/m² (Typ.) |
| cóimheas codarsnachta | 900 : 1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| freagra | 30 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | ADS, Normally Black, Transmissive |
| doimhneacht dath | 16.7M 50% NTSC |
| cúlsolas | 5S4P WLED , 20K hours , No Driver |
| mais | 74.5g (Typ.) |
| a úsáidtear le haghaidh | Pad & Tablet |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | MIPI (4 data lanes) , 34 pins Connector |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
