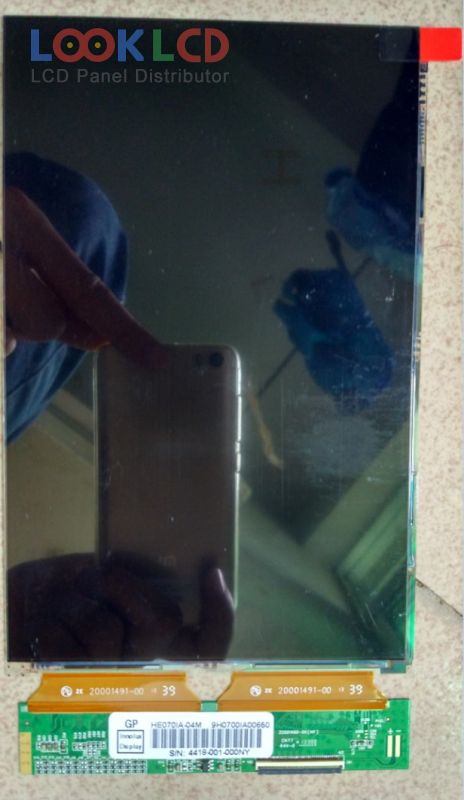

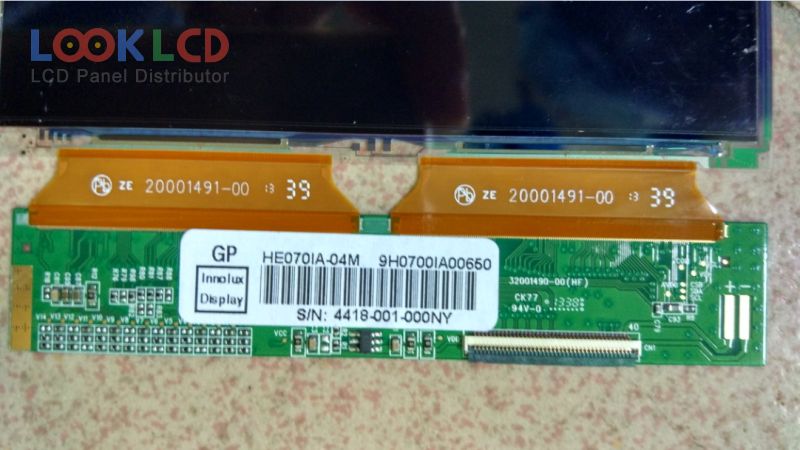

| Uimhir Pháirt | HE070IA-04M |
| Branda | Innolux |
| Méid | 7.0 |
| Iarratas | PAD |
| Rún | 800×1280 |
| Comhdhéanamh | CELL |
| Gile | 0 |
| CR | 800:1 |
| Dathanna | 16.7M |
| Cúlsolas | No B/L |
| Comhéadan | MIPI |
| branda painéil | INNOLUX |
| múnla painéil | HE070IA-04M |
| cineál painéil | a-Si TFT-LCD , CELL |
| méid an phainéil | 7.0 inch |
| taifeach | 800(RGB)×1280 , WXGA |
| mód taispeána | IPS, Normally Black, Transmissive |
| limistéar gníomhach | 94.2×150.72 mm |
| imlíne | 101.5×159.52×0.77 mm |
| dromchla | Hard coating |
| doimhneacht gloine | 0.25+0.25 mm |
| transmissivity | 3.6% (Typ.)(with Polarizer) |
| cóimheas codarsnachta | 800:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (8-bit), CIE193160% |
| am freagartha | 15/25 (Typ.)(Tr/Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| comhéadan comhartha | MIPI (4 data lanes), 40 pins |
| voltas ionchuir | 3.3/8.8/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| iarratas | PAD |
