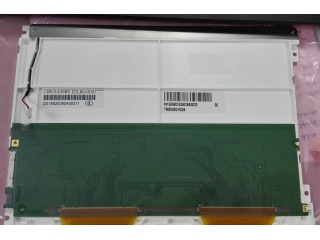

| Uimhir Pháirt | TM084SDHG04 |
| Branda | TIANMA |
| Méid | 8.4 |
| Iarratas | Industrial |
| Rún | 800×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | 8S3P |
| Comhéadan | LVDS |
| branda painéil | TIANMA |
| múnla painéil | TM084SDHG04 |
| méid an phainéil | 8.4" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 800(RGB)×600, SVGA, 119PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 170.4(W)×127.8(H) mm |
| oscailt bezel | 173.0(W)×130.6(H) mm |
| méid imlíne | 203(W)×143.5(H) ×7.05(D) mm |
| dromchla | Antiglare |
| gile | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 70/70/60/70 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 12 o'clock |
| am freagartha | 20 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 40% NTSC |
| cineál lampa | 8S3P WLED , 30K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 240g (Typ.) |
| iarratas | Industrial |
| comhéadan comhartha | LVDS (1 ch, 6-bit) , 20 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LQ9D024 | SHARP | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| TM084SBHG04 | Tianma | 8.4 | 800×600 |
| TM084SDHG01 | Tianma | 8.4 | 800×600 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
| TM084SDHG50 | Tianma | 8.4 | 800×600 |
