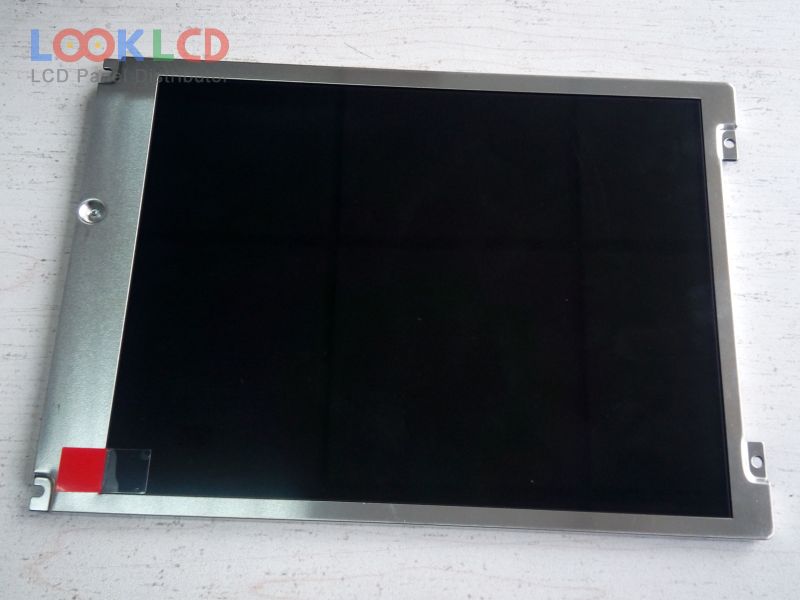

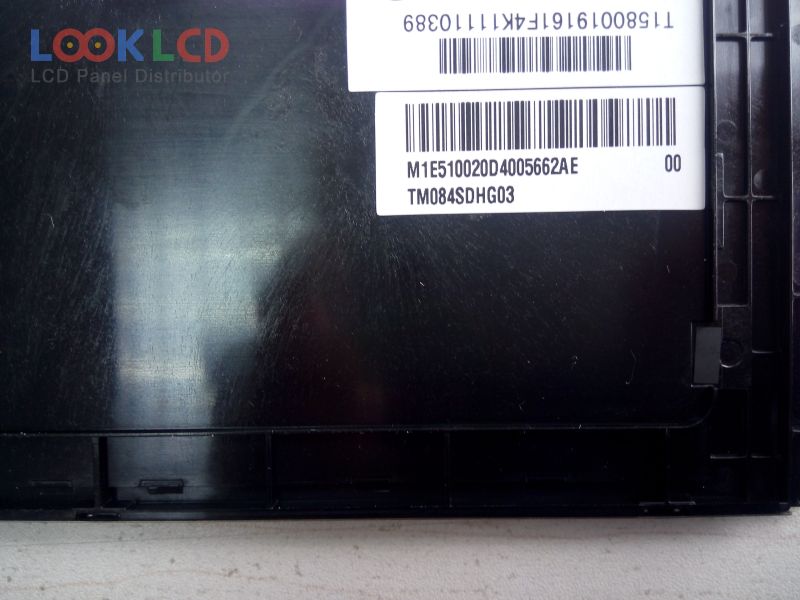

| Uimhir Pháirt | TM084SDHG03 |
| Branda | Tianma |
| Méid | 8.4 |
| Iarratas | IA |
| Rún | 800×600 |
| Comhdhéanamh | LCM |
| Gile | 350 |
| CR | 500:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | TIANMA |
| múnla painéil | TM084SDHG03 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 8.4 inch |
| taifeach | 800(RGB)×600 , SVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 170.4×127.8 mm |
| imlíne | 203×142.5×5.9 mm |
| dromchla | Antiglare |
| gile | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| am freagartha | 20 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 8S3PWLEDEmbedded (LED Driver) |
| comhéadan comhartha | Parallel RGB (1 ch, 6/8-bit), 20 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | IA |
