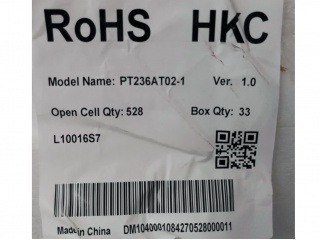

| Uimhir Pháirt | PT236AT02-1 |
| Branda | HKC |
| Méid | 23.6 |
| Iarratas | TV Sets |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD , CELL |
| Gile | |
| CR | 3000:1 |
| Dathanna | 16.7M |
| Cúlsolas | No |
| Comhéadan | LVDS |
| branda painéil | HKC |
| méid an phainéil | 23.6" |
| taifeach | 1366(RGB)×768, WXGA, 66PPI |
| limistéar taispeána | 521.471(W)×293.184(H) mm |
| méid imlíne | 535.471(W)×306.404(H) ×1.37(D) mm |
| gile | 0 cd/m² |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| doimhneacht gloine | 0.50+0.50 mm |
| dathanna a thaispeáint | 16.7M 71% NTSC |
| minicíocht | 60Hz |
| Tiománaí ic | COF Built-in 2 source + 2 gate chips |
| meáchan painéal | 500g (Typ.) |
| comhéadan comhartha | LVDS (1 ch, 8-bit) , 30 pins Connector |
| voltas ionchuir | 12.0V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| múnla painéil | PT236AT02-1 |
| cineál painéil | a-Si TFT-LCD , CELL |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | - |
| dromchla | Antiglare (Haze 3%), Hard coating (3H) |
| cóimheas codarsnachta | 3000:1 (Typ.) (TM) |
| mód taispeána | FSA, Normally Black, Transmissive |
| am freagartha | 9.5 (Typ.)(G to G) |
| transmissivity | 5.8% (Typ.)(with Polarizer) |
| cineál lampa | No B/L |
| scáileán tadhaill | Without |
| iarratas | TV Sets |
