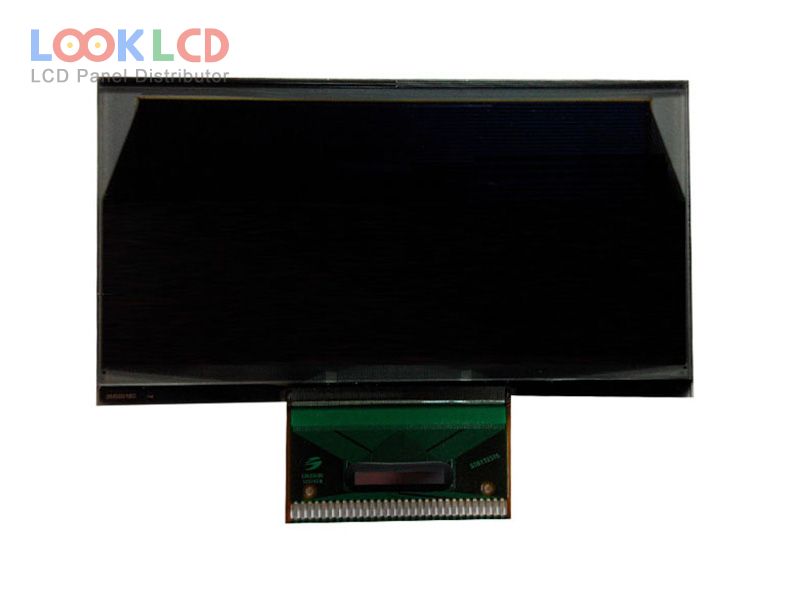

OEL9M5003-B-E

OEL9M5003-B-E
OEL9M5003-B-E thumb
Branda
Other
Méid
2.7
Iarratas
Rún
128×64
Comhdhéanamh
OLED
Gile
CR
10000:1
Dathanna
Mono(Blue)
Cúlsolas
self
Comhéadan
CPU/SPI
In Stock
12761
Sonraíochtaí

Uimhir Pháirt OEL9M5003-B-E
BrandaOther
Méid2.7
Iarratas
Rún128×64
ComhdhéanamhOLED
Gile
CR10000:1
DathannaMono(Blue)
Cúlsolasself
ComhéadanCPU/SPI
branda painéilTRULY
múnla painéilOEL9M5003-B-E
cineál painéil PM-OLED , OLED
méid an phainéil2.7 inch
taifeach128×64
limistéar gníomhach61.41×30.69 mm
imlíne73×40.24×2.15 mm
dromchla
gile
cóimheas codarsnachta10000 : 1 (Min.)
dathanna a thaispeáintMono(Blue) (1-bit)
uillinn féachana80/80/80/80 (Min.)(L/R/U/D)
minicíocht100Hz
Tiománaí icTAB Built-in SSD1305T7R1
comhéadan comhartha8-bit 6800/8080 parallel, SPI, 30 pins
voltas ionchuir3.0/13.0V (Typ.)(VDD/VCC)
Múnla Teaghlaigh
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
