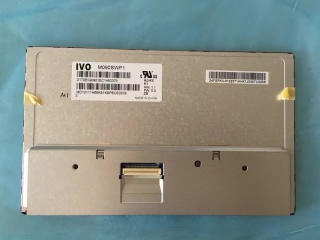

| Uimhir Pháirt | M090SWP1 R1 |
| Branda | IVO |
| Méid | 9.0 |
| Iarratas | Industrial |
| Rún | 800×480 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | - |
| CR | 500:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | |
| branda painéil | IVO |
| méid an phainéil | 9.0" |
| taifeach | 800(RGB)×480, WVGA, 104PPI |
| limistéar taispeána | 198(W)×111.696(H) mm |
| méid imlíne | 211.1(W)×128.4(H) ×7.1(D) mm |
| gile | - |
| uillinn féachana | 70/70/50/70 (Typ.)(CR≥10) |
| radharc is fearr ar | 6 o'clock |
| dathanna a thaispeáint | 16.7M 50% NTSC |
| minicíocht | 60Hz |
| meáchan | - |
| múnla painéil | M090SWP1 R1 |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 201.0(W)×114.7(H) mm |
| dromchla | Antiglare, Hard coating (3H) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| mód taispeána | TN, Normally White, Transmissive |
| am freagartha | 10/15 (Typ.)(Tr/Td) |
| cineál lampa | WLED , 20K hours , With LED Driver |
| scáileán tadhaill | Without |
| iarratas | Industrial |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
