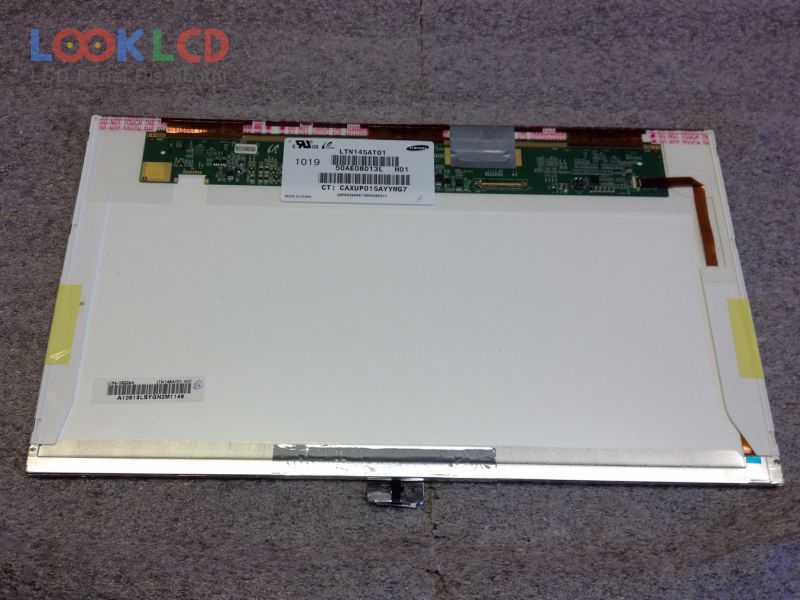

| Uimhir Pháirt | LTN145AT01-H01 |
| Branda | Samsung |
| Méid | 14.5 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 220 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | SAMSUNG |
| múnla painéil | LTN145AT01-H01 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 14.5 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 321.693×180.864 mm |
| imlíne | 336.8×196.9×5.3 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Glare (Haze 0%), Hard coating (3H) |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193160% |
| am freagartha | 8 (Typ.)(G to G) |
| uillinn féachana | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
| LP145WH1-TLA1 | LG Display | 14.5 | 1366×768 |
| LTN145AT01-H01 | Samsung | 14.5 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| LP154WE2-TLA7 | LG Display | 15.4 | 1680×1050 |
| LP156WH1-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPD1 | LG Display | 15.6 | 1366×768 |
| LTN133AT23-B01 | Samsung | 13.3 | 1366×768 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
