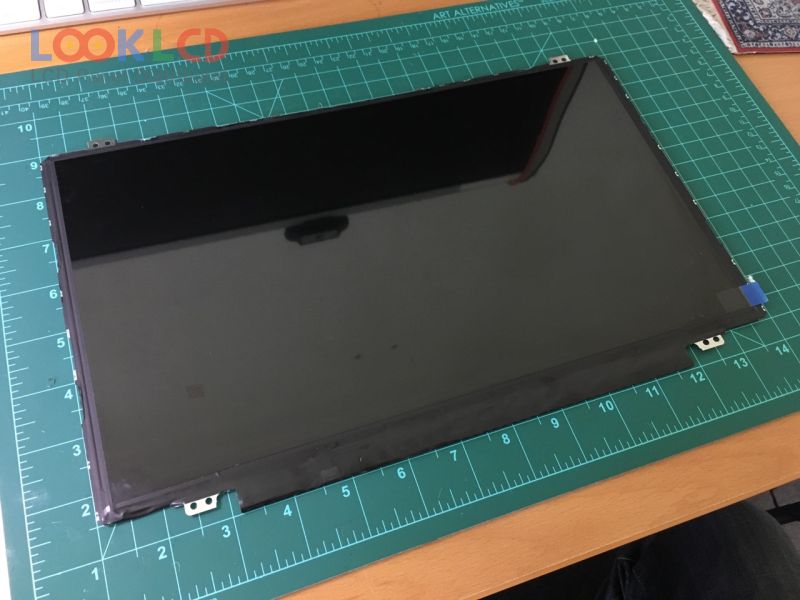

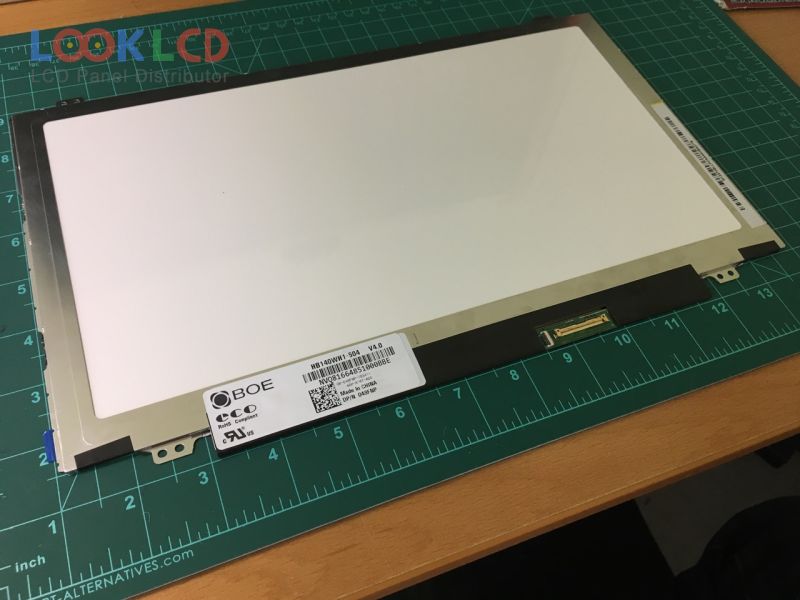

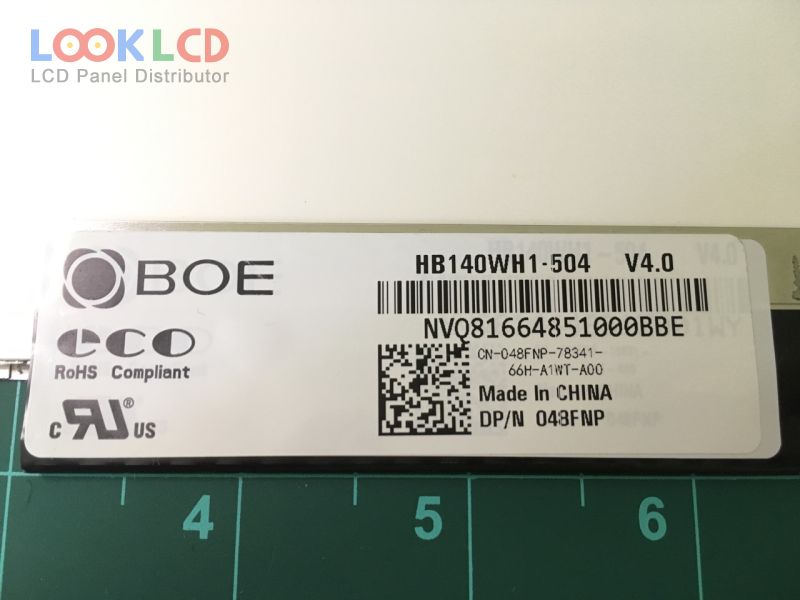

| Uimhir Pháirt | HB140WH1-504 |
| Branda | BOE |
| Méid | 14.0 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 220 |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda painéil | BOE |
| múnla painéil | HB140WH1-504 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 14.0 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 309.399×173.952 mm |
| imlíne | 320.9×187.6 mm |
| stíl cruth | Slim (PCBA Flat, Depth ≤3.2mm) |
| dromchla | Hard coating (7H) |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193145% |
| am freagartha | 12 (Typ.)(Tr+Td) |
| uillinn féachana | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 8S4PWLEDEmbedded (LED Driver) |
| comhéadan comhartha | eDP (1 Lane), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
