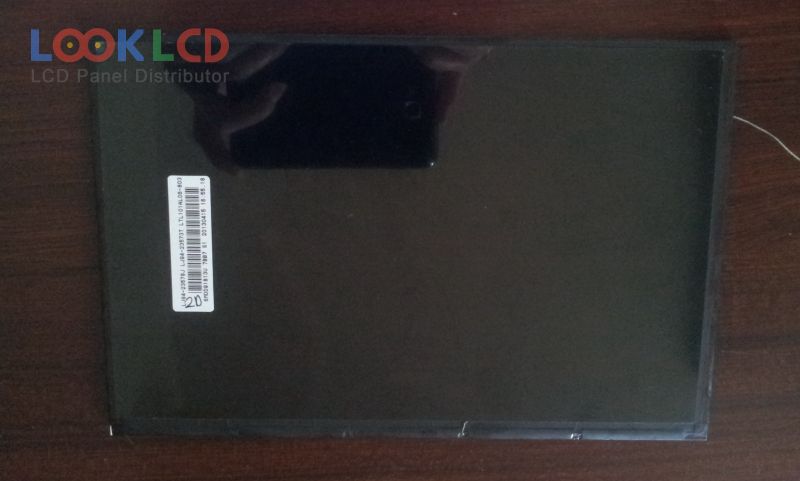

| Uimhir Pháirt | LTL101AL06-803 |
| Branda | Samsung |
| Méid | 10.1 |
| Iarratas | PAD |
| Rún | 1280×800 |
| Comhdhéanamh | LCM |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.2M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | SAMSUNG |
| múnla painéil | LTL101AL06-803 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 10.1 inch |
| taifeach | 1280(RGB)×800 , WXGA |
| mód taispeána | PLS, Normally Black, Transmissive |
| limistéar gníomhach | 216.96×135.6 mm |
| dromchla | |
| gile | |
| cóimheas codarsnachta | 900:1 (Typ.) |
| dathanna a thaispeáint | 16.2M (6-bit + FRC), CIE193150% |
| am freagartha | 30 (Typ.)(Tr+Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 8-bit) |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | PAD |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| HV089WU1-1E0 | HYDIS | 8.9 | 1920×1200 |
| LP079X01-SMA2 | LG Display | 7.9 | 768×1024 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| TM090JDH01 | Tianma | 9.0 | 1280×800 |
