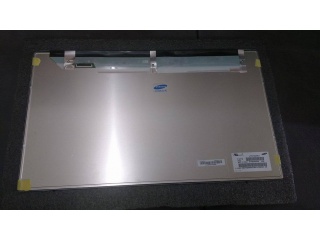

| Uimhir Pháirt | LTF230AN01 |
| Branda | SAMSUNG |
| Méid | 23.0 |
| Iarratas | TV Sets |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 4000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda | SAMSUNG |
| Mionsamhail | LTF230AN01 |
| méid trasnánach | 23.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 1366(RGB)×768 [WXGA] 68PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 508.152(H)×285.696(V) mm |
| imlíne dim. | - |
| luminance | - |
| cóimheas codarsnachta | 4000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 8 (Typ.)(G to G) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| modh oibriúcháin | PVA, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 68% NTSC |
| foinse solais | WLED |
| meáchan | - |
| deartha le haghaidh | TV Sets |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| cineál comhéadan | LVDS (1 ch, 8-bit) , 30 pins Connector |
| soláthar leictreachas | 12.0V (Typ.) |
| timpeallacht | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
