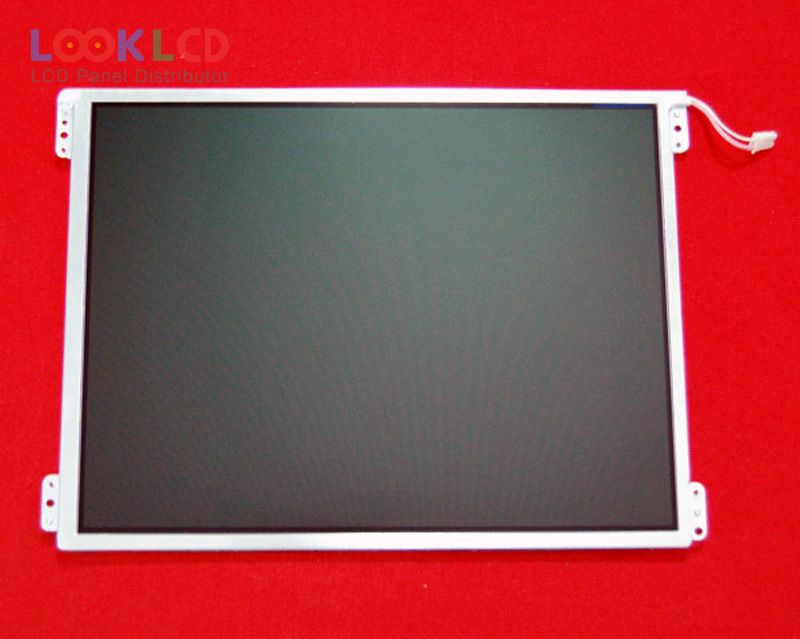

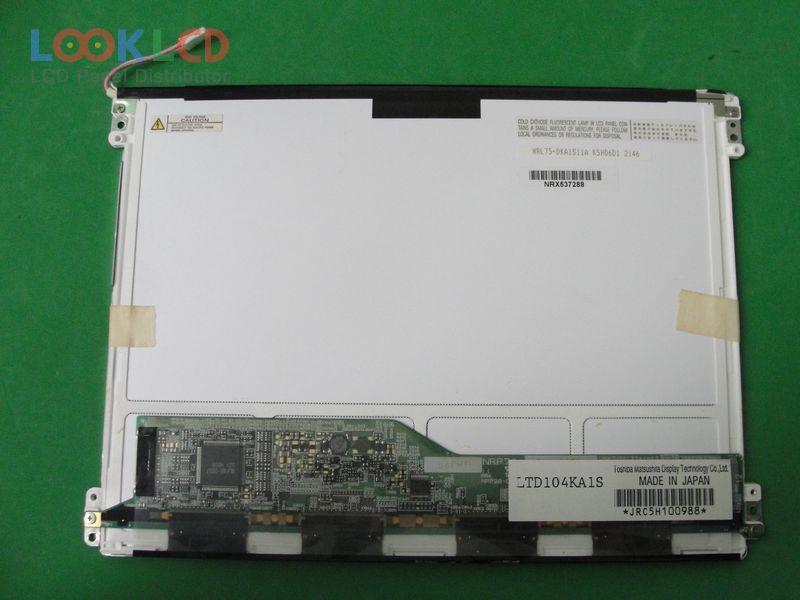

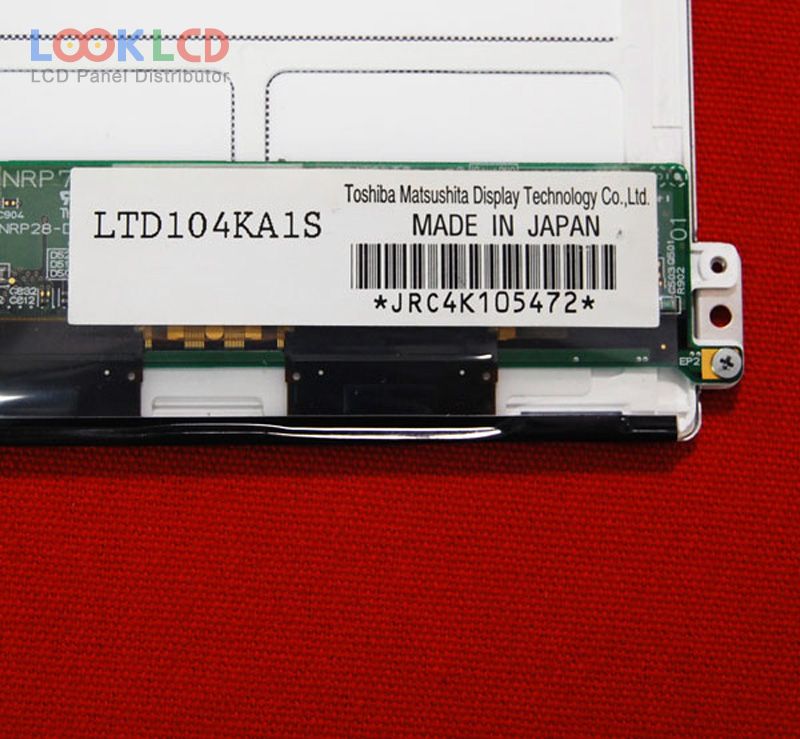

| Uimhir Pháirt | LTD104KA1S |
| Branda | TOSHIBA |
| Méid | 10.4 |
| Iarratas | NBPC |
| Rún | 1024×768 |
| Comhdhéanamh | LCM |
| Gile | 170 |
| CR | 250:1 |
| Dathanna | 262K |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | Toshiba Matsushita |
| múnla painéil | LTD104KA1S |
| cineál painéil | LTPS TFT-LCD , LCM |
| méid an phainéil | 10.4 inch |
| taifeach | 1024(RGB)×768 , XGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 210.4×157.8 mm |
| imlíne | 238.6×173.2 mm |
| dromchla | |
| gile | 170 cd/m² (Typ.) |
| cóimheas codarsnachta | 250:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit) |
| am freagartha | 50/50 (Max.)(Tr/Td) |
| uillinn féachana | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| cineál lampa | 1 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 14 pins |
| voltas ionchuir | 3.3V (Typ.) |
| rohs: | |
| iarratas | NBPC |
