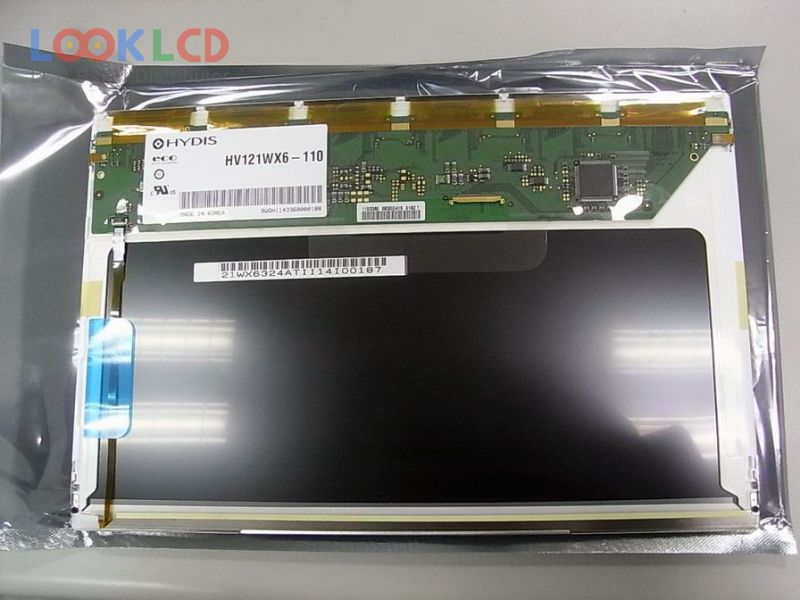

| Uimhir Pháirt | HV121WX6-110 |
| Branda | HYDIS |
| Méid | 12.1 |
| Iarratas | PAD |
| Rún | 1280×800 |
| Comhdhéanamh | LCM |
| Gile | 300 |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | HYDIS |
| múnla painéil | HV121WX6-110 1 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 12.1 inch |
| taifeach | 1280(RGB)×800 , WXGA |
| mód taispeána | AFFS, Normally Black, Transmissive |
| limistéar gníomhach | 261.12×163.2 mm |
| imlíne | 276.8×180×6.6 mm |
| dromchla | |
| gile | 300 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit) |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 12S4PWLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | PAD |
