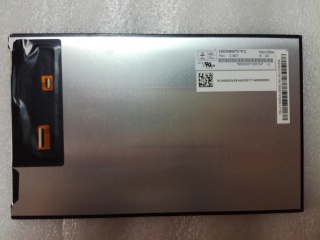

| Uimhir Pháirt | HSD080PWW2-B01 |
| Branda | HannStar |
| Méid | 8.0 |
| Iarratas | Pad & Tablet Ind |
| Rún | 800×1280 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 800:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | |
| branda | HannStar |
| Mionsamhail | HSD080PWW2-B01 |
| méid trasnánach | 8.0 inch |
| cineál | a-Si TFT-LCD, LCM |
| formáid picteilín | 800(RGB)×1280 [WXGA] 188PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 107.64(H)×172.224(V) mm |
| imlíne dim. | 114.8(H)×184.7(V) ×3.71(D) mm |
| limistéar bezel | - |
| cóireáil | Hard coating (3H) |
| luminance | 450 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| modh oibriúcháin | IPS Pro, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 60% NTSC |
| foinse solais | WLED [7S3P] , 15K hours , W/O Driver |
| meáchan | 100g (Typ.) |
| deartha le haghaidh | Pad & Tablet Industrial |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
