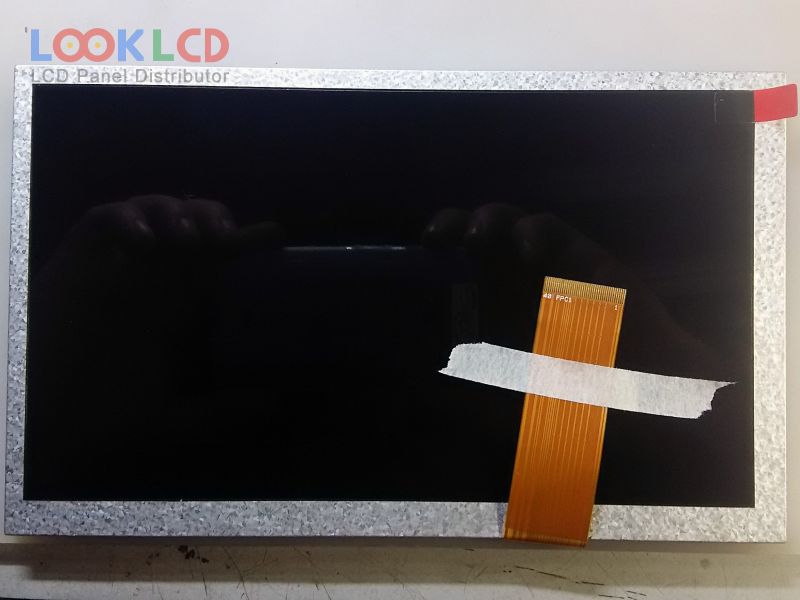

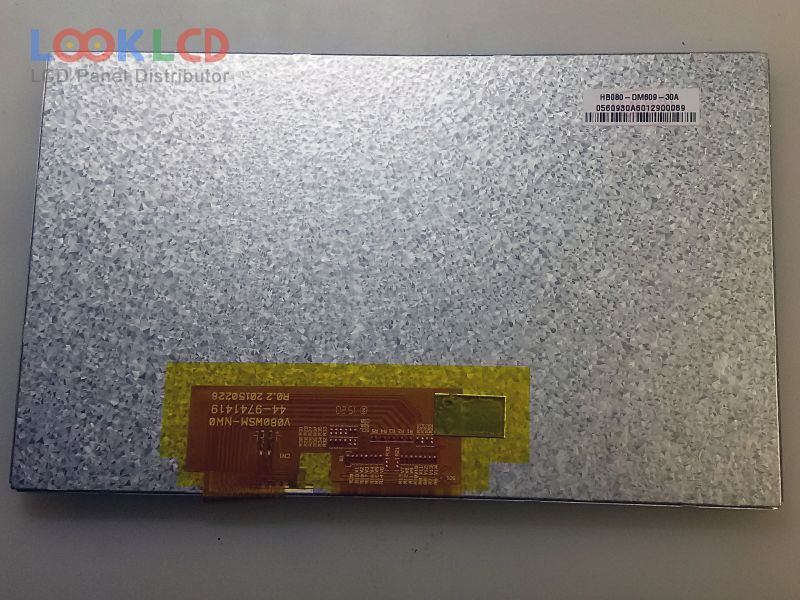

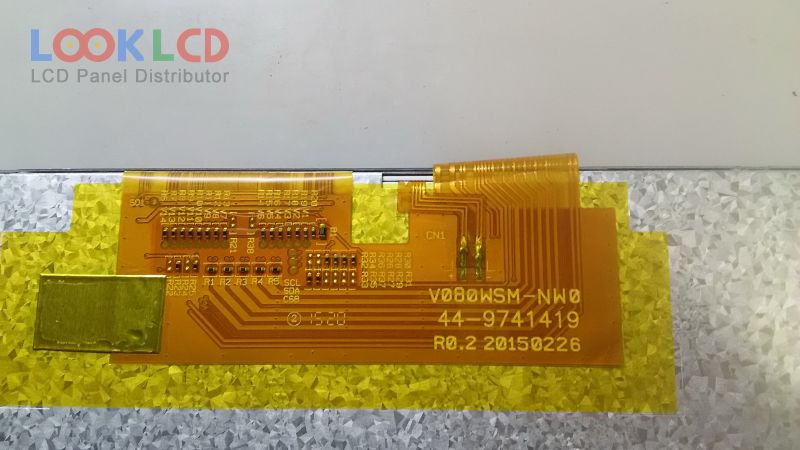

| Uimhir Pháirt | AV080WSM-NW0 |
| Branda | BOE |
| Méid | 8.0 |
| Iarratas | CNS |
| Rún | 1024×600 |
| Comhdhéanamh | LCM |
| Gile | 600 |
| CR | 800:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | BOE |
| múnla painéil | AV080WSM-NW0 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 8.0 inch |
| taifeach | 1024(RGB)×600 , WSVGA |
| mód taispeána | ADS, Normally Black, Transmissive |
| limistéar gníomhach | 176.64×99.36 mm |
| imlíne | 192.8×116.9 mm |
| dromchla | |
| gile | 600 cd/m² (Typ.) |
| cóimheas codarsnachta | 800:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (6-bit + Hi-FRC), CIE193150% |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 3S10PWLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 8-bit), 40 pins |
| voltas ionchuir | 3.3/11.5/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| iarratas | CNS |
