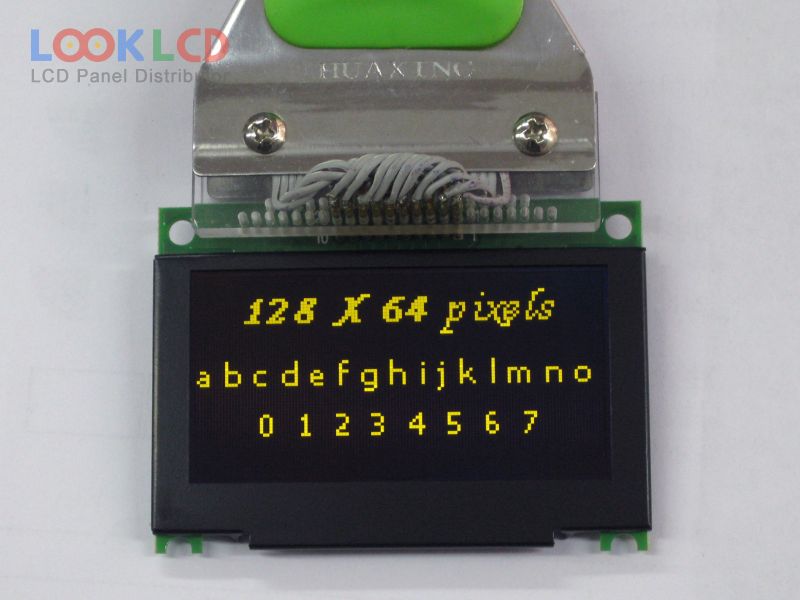

| Uimhir Pháirt | HGS128645-Y-EH-LV |
| Branda | Other |
| Méid | 2.7 |
| Iarratas | IA |
| Rún | 128×64 |
| Comhdhéanamh | OLED |
| Gile | 100 |
| CR | 2000:1 |
| Dathanna | Mono(Yellow) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda painéil | TSINGTEK |
| múnla painéil | HGS128645-Y-EH-LV |
| cineál painéil | PM-OLED , OLED |
| méid an phainéil | 2.7 inch |
| taifeach | 128×64 |
| limistéar gníomhach | 61.41×30.69 mm |
| imlíne | 75×53.5×7 mm |
| dromchla | |
| gile | 100 cd/m² (Typ.) |
| cóimheas codarsnachta | 2000 : 1 (Min.) |
| dathanna a thaispeáint | Mono(Yellow) |
| uillinn féachana | 80/80/80/80 (Min.)(L/R/U/D) |
| Tiománaí ic | Built-in SSD1325 |
| comhéadan comhartha | 8-bit 6800/8080 parallel, SPI, 20 pins |
| voltas ionchuir | 3.3V (Typ.) |
| rohs: | |
| iarratas | IA |
