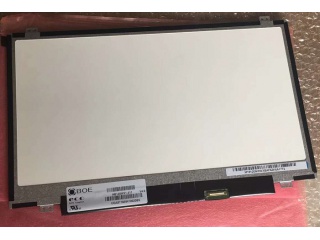

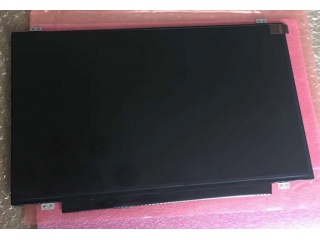

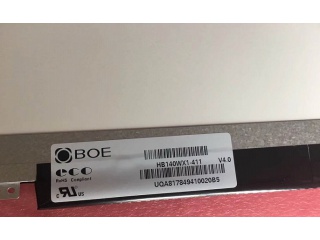

| Uimhir Pháirt | HB140WX1-411 |
| Branda | BOE |
| Méid | 14.0 |
| Iarratas | Laptop |
| Rún | 1366×768 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | 9S4P |
| Comhéadan | eDP |
| branda painéil | BOE |
| múnla painéil | HB140WX1-411 (BOE0600) |
| méid an phainéil | 14.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1366(RGB)×768, WXGA, 112PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 309.399(W)×173.952(H) mm |
| oscailt bezel | - |
| méid imlíne | 320.4(W)×205.1(H) ×3.6(D) mm |
| dromchla | Antiglare |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) (TM) |
| uillinn féachana | 45/45/20/40 (Typ.)(CR≥10) |
| mód taispeána | TN, Normally White, Transmissive |
| radharc is fearr ar | 6 o'clock |
| am freagartha | 8 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 262K 45% NTSC |
| cineál lampa | 9S4P WLED , 15K hours , With LED Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| stíl cruth | Flat (PCBA Flat, T3.4~4.0mm) |
| iarratas | Laptop |
| comhéadan comhartha | eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LTN140AT06-A01 | Samsung | 14.0 | 1366×768 |
