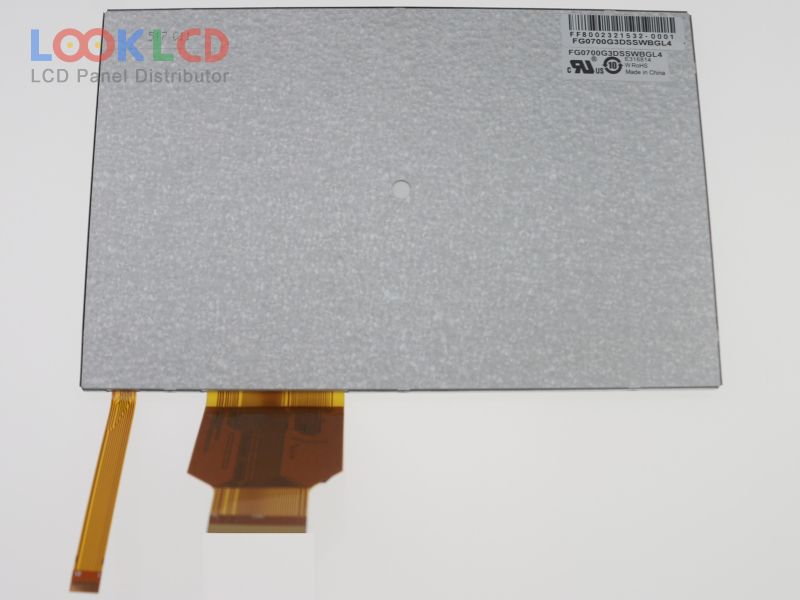

| Uimhir Pháirt | FG0700G3DSSWBGL4 |
| Branda | Data Image |
| Méid | 7.0 |
| Iarratas | CNS |
| Rún | 800×480 |
| Comhdhéanamh | LCM |
| Gile | 900 |
| CR | 600:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | TTL |
| branda painéil | Data Image |
| múnla painéil | FG0700G3DSSWBGL4 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 7.0 inch |
| taifeach | 800(RGB)×480 , WVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 152.4×91.44 mm |
| imlíne | 165×106.4 mm |
| dromchla | |
| gile | 900 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (8-bit) |
| am freagartha | 5/15 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 3S10PWLEDWithout Driver |
| comhéadan comhartha | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | CNS |
