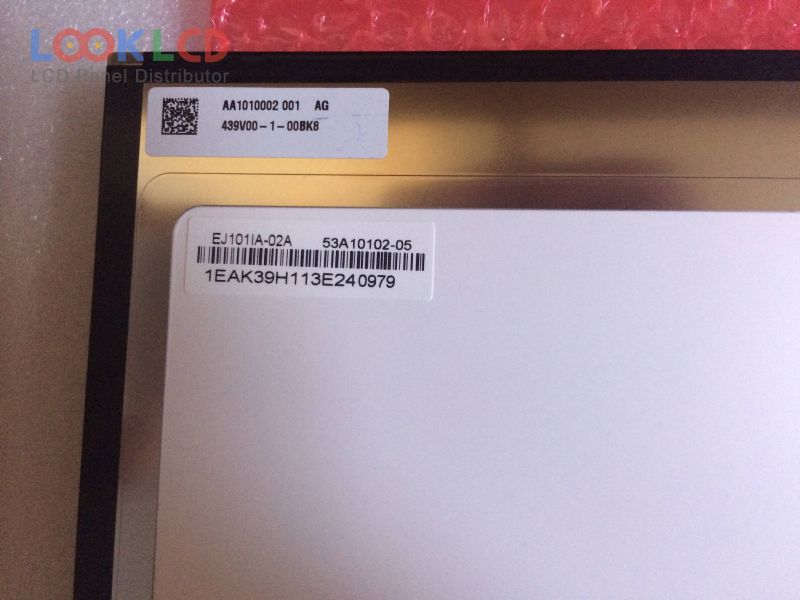

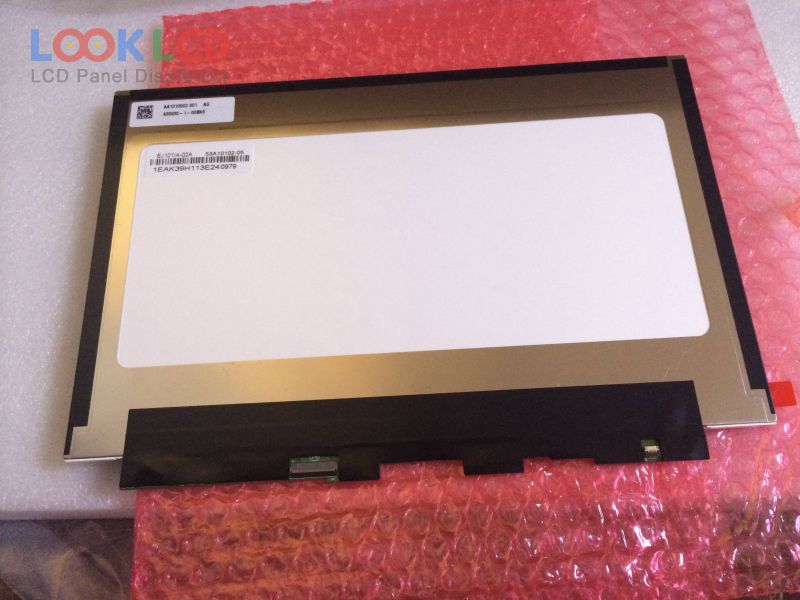

| Uimhir Pháirt | EJ101IA-02A |
| Branda | Innolux |
| Méid | 10.1 |
| Iarratas | PAD |
| Rún | 1280×800 |
| Comhdhéanamh | LCM |
| Gile | 400 |
| CR | 1000:1 |
| Dathanna | 16.2M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | CHIMEI INNOLUX |
| múnla painéil | EJ101IA-02A |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 10.1 inch |
| taifeach | 1280(RGB)×800 , WXGA |
| mód taispeána | IPS, Normally Black, Transmissive |
| limistéar gníomhach | 216.96×135.6 mm |
| imlíne | 226.33×157.3×3.14 mm |
| dromchla | |
| gile | 400 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) |
| dathanna a thaispeáint | 16.2M (6-bit + FRC), CIE193150% |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | 6S6PWLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 8-bit), 45 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | PAD |
