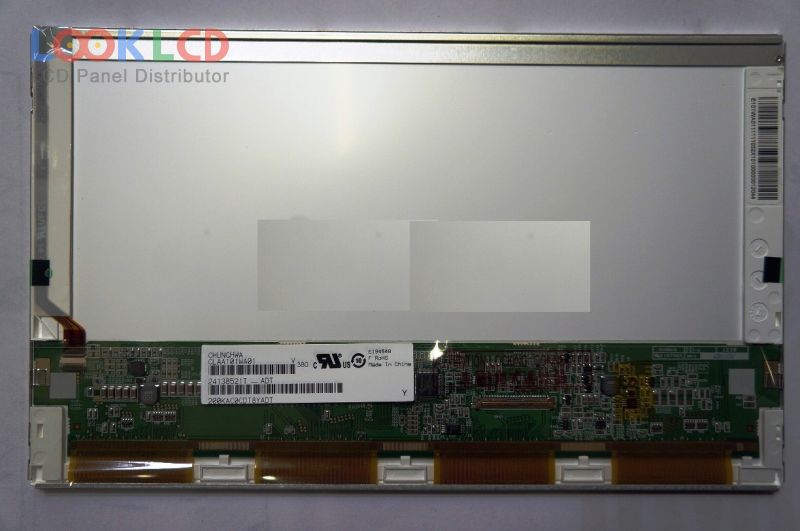

| Uimhir Pháirt | CLAA101WA01 |
| Branda | CPT |
| Méid | 10.1 |
| Iarratas | NBPC |
| Rún | 1366×768 |
| Comhdhéanamh | LCM |
| Gile | 230 |
| CR | 500:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | CPT |
| múnla painéil | CLAA101WA01 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 10.1 inch |
| taifeach | 1366(RGB)×768 , WXGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 222.72×125.22 mm |
| imlíne | 235×143×5.2 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 230 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193158% |
| am freagartha | 16 (Typ.)(Tr+Td) |
| uillinn féachana | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (1 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
