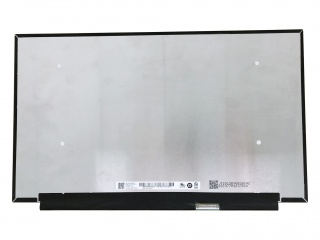

| Uimhir Pháirt | B156HAN10.1 |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | Laptop Gaming |
| Rún | 1920×1080 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 1.07B |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| branda painéil | AUO |
| múnla painéil | B156HAN10.1 |
| méid an phainéil | 15.6" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1920(RGB)×1080, FHD, 141PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 344.16(W)×193.59(H) mm |
| oscailt bezel | - |
| méid imlíne | 350.66(W)×216.15(H) ×3(D) mm |
| dromchla | Antiglare, Hard coating (3H) |
| gile | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | AHVA, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G)(OD) |
| dathanna a thaispeáint | 1.07B 100% Adobe RGB |
| cineál lampa | WLED , 15K hours , With LED Driver |
| minicíocht | 144Hz |
| scáileán tadhaill | Without |
| stíl cruth | Slim (PCBA Flat, T≤3.2mm) |
| iarratas | Laptop Gaming |
| comhéadan comhartha | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
