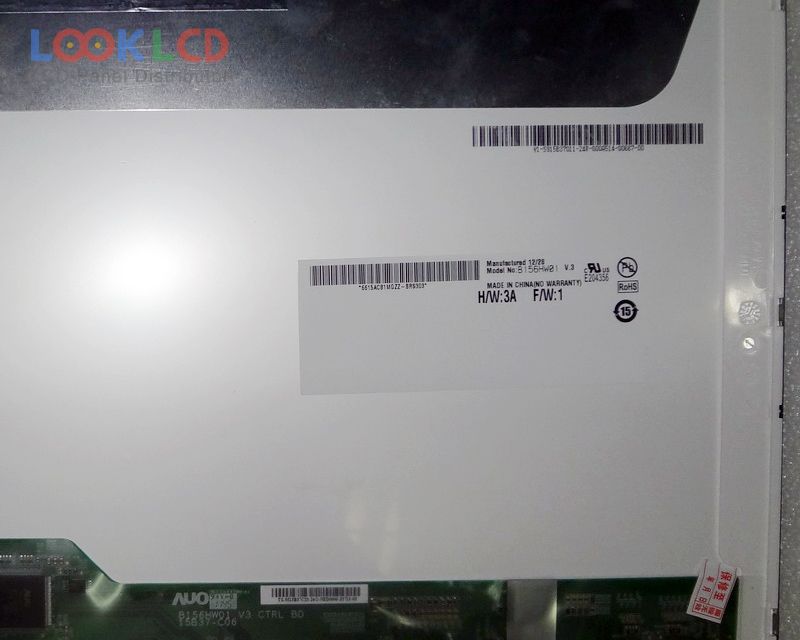

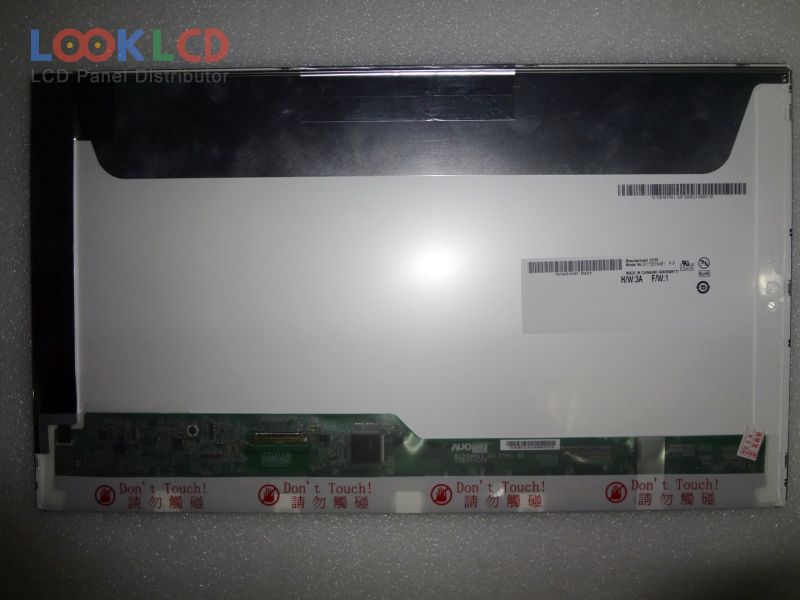

| Uimhir Pháirt | B156HW01 V3 |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | NBPC |
| Rún | 1920×1080 |
| Comhdhéanamh | LCM |
| Gile | 220 |
| CR | 400:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | AUO |
| múnla painéil | B156HW01 V3 20 Compatible model |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 15.6 inch |
| taifeach | 1920(RGB)×1080 , FHD |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 344.16×193.59 mm |
| imlíne | 359.3×209.5×5.7 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Antiglare |
| gile | 220 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit), CIE193160% |
| am freagartha | 2/6 (Typ.)(Tr/Td) |
| uillinn féachana | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDEmbedded (LED Driver) |
| comhéadan comhartha | LVDS (2 ch, 6-bit), 40 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
