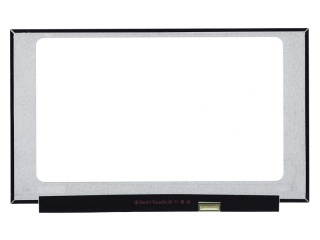

| Uimhir Pháirt | B156HAN02.8 |
| Branda | AUO |
| Méid | 15.6 |
| Iarratas | Laptop |
| Rún | 1920×1080 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 800:1 |
| Dathanna | 262K |
| Cúlsolas | WLED |
| Comhéadan | eDP |
| monaróir | AUO |
| méid scáileáin | 15.6 inch |
| uimhir picteilín | 1920(RGB)×1080 (FHD) 141PPI |
| limistéar gníomhach(mm) | 344.16 × 193.59 (H×V) |
| limistéar bezel (mm) | - |
| luminance | 250 cd/m² (Typ.) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| radharc maith ag | Symmetry |
| doimhneacht dath | 262K 46% NTSC |
| cruth imlíne | Slim (PCBA Flat, T≤3.2mm) |
| ráta athnuachana | 60Hz |
| cineál comhartha | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| soláthar voltais | 3.3V (Typ.) |
| uas. rátálacha | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ainm samhail | B156HAN02.8 (AUO28ED) |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| socrú | RGB Vertical Stripe |
| imlíne (mm) | 350.66 × 216.15 × 3.2 (H×V×D) |
| cóireáil | Antiglare |
| cóimheas codarsnachta | 800 : 1 (Typ.) (TM) |
| freagra | 25 (Typ.)(Tr+Td) ms |
| modh oibre | AHVA, Normally Black, Transmissive |
| cúlsolas | WLED , 15K hours , With LED Driver |
| a úsáidtear le haghaidh | Laptop |
| scáileán tadhaill | Without |
