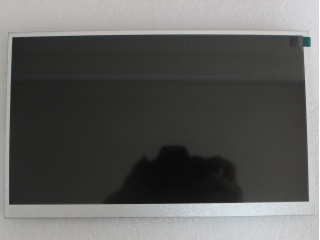

| Uimhir Pháirt | AM-1024600ITZQW-00H |
| Branda | AMPIRE |
| Méid | 10.1 |
| Iarratas | Industrial |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 500:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | AMPIRE |
| múnla painéil | AM-1024600ITZQW-00H |
| méid an phainéil | 10.1" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1024(RGB)×600, WSVGA, 117PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 222.72(W)×125.28(H) mm |
| oscailt bezel | - |
| méid imlíne | 234.9(W)×143(H) ×4.9(D) mm |
| dromchla | Antiglare, Hard coating |
| gile | 550 cd/m² (Typ.) |
| cóimheas codarsnachta | 500:1 (Typ.) (TM) |
| uillinn féachana | 89/89/89/89 (Typ.)(CR≥10) |
| mód taispeána | IPS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 12/28 (Typ.)(Tr/Td) |
| dathanna a thaispeáint | 262K/16.7M 70% NTSC |
| cineál lampa | WLED , 50K hours , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | - |
| iarratas | Industrial |
| comhéadan comhartha | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| voltas ionchuir | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
