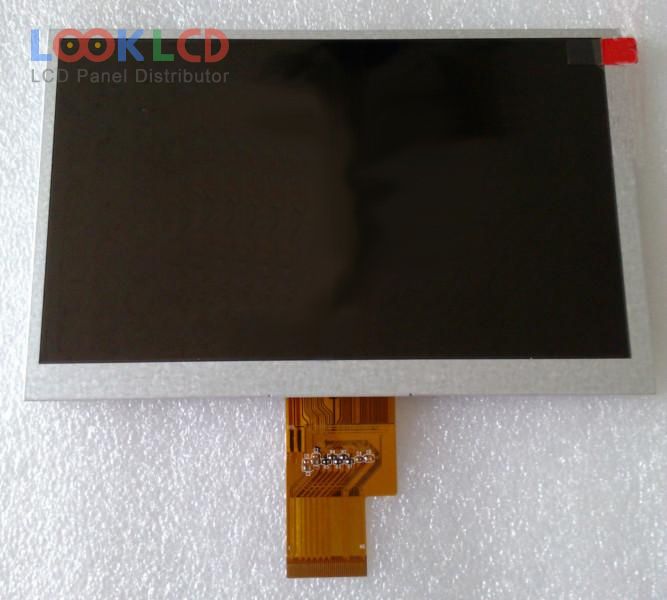

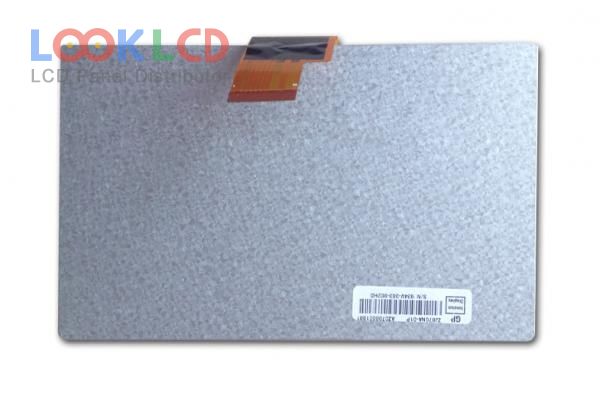

| Uimhir Pháirt | ZJ070NA-01P |
| Branda | Innolux |
| Méid | 7.0 |
| Iarratas | CNS |
| Rún | 1024×600 |
| Comhdhéanamh | LCM |
| Gile | 500 |
| CR | 700:1 |
| Dathanna | 262K/16.7M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | CHIMEI INNOLUX |
| múnla painéil | ZJ070NA-01P |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 7.0 inch |
| taifeach | 1024(RGB)×600 , WSVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 153.6×90 mm |
| imlíne | 165.75×105.39×5.1 mm |
| dromchla | Glare (Haze 0%) |
| gile | 500 cd/m² (Typ.) |
| cóimheas codarsnachta | 700:1 (Typ.) |
| dathanna a thaispeáint | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| am freagartha | 10/15 (Typ.)(Tr/Td) |
| uillinn féachana | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 6/8-bit), 40 pins |
| voltas ionchuir | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| iarratas | CNS |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| DLC0700EZG-2 | Other | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
| 70WVW2A | SII | 7.0 | 800×480 |
| A070FW01 | AUO | 7.0 | 480×234 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| G141I1-L01 | Innolux | 14.1 | 1280×800 |
| G150X1-L01 | Innolux | 15.0 | 1024×768 |
| PA064XS2 | E Ink | 6.4 | 320×234 |
| PD040QX1 | E Ink | 4.0 | 320×240 |
| PW070XUA | E Ink | 7.0 | 480×234 |
