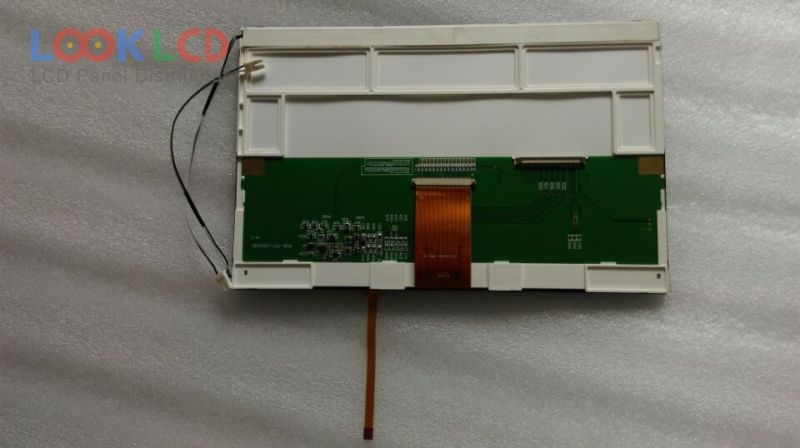

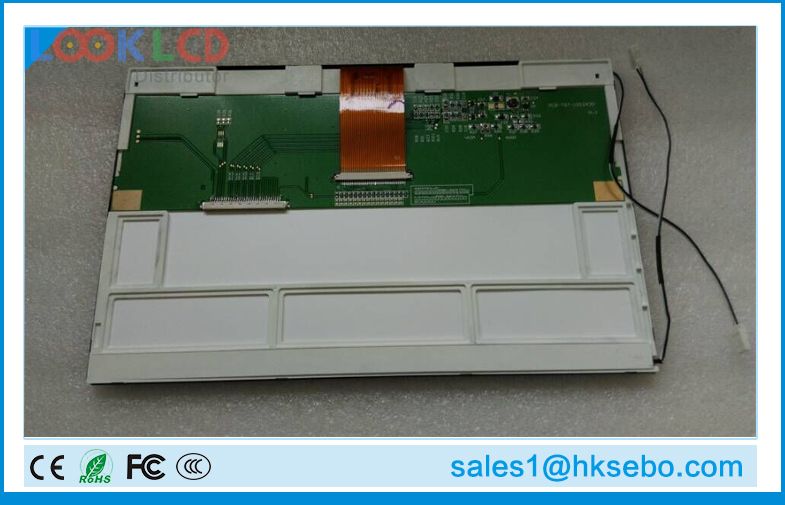

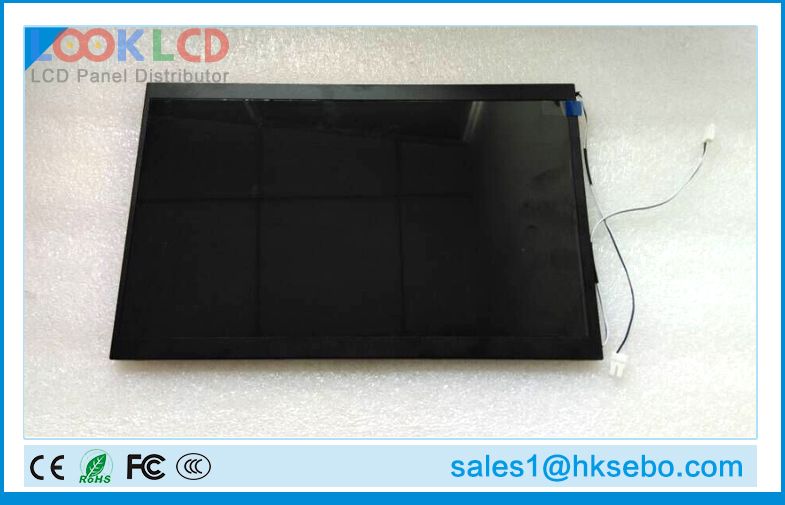

| Uimhir Pháirt | YXD101301000-60 |
| Branda | SEBO |
| Méid | 10.1 |
| Iarratas | CNS |
| Rún | 1024×600 |
| Comhdhéanamh | LCM |
| Gile | 1000 |
| CR | 600:1 |
| Dathanna | 16.2M |
| Cúlsolas | WLED |
| Comhéadan | LVDS |
| branda painéil | SEBO |
| múnla painéil | YXD101301000-60 |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 10.1 inch |
| taifeach | 1024(RGB)×600 , WSVGA |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 222.72×125.28 mm |
| imlíne | 235×149.2×6.3 mm |
| dromchla | Antiglare |
| gile | 1000 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 16.2M (6-bit + FRC), CIE193152% |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |
| cineál lampa | WLEDWithout Driver |
| comhéadan comhartha | LVDS (1 ch, 8-bit), 60 pins |
| voltas ionchuir | 3.3/9.6/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| iarratas | CNS |
