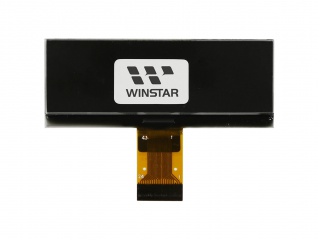

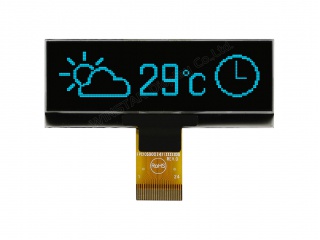

| Uimhir Pháirt | WEO012832AS |
| Branda | Winstar |
| Méid | 2.2 |
| Iarratas | Handheld & PDA I |
| Rún | 128×32 |
| Comhdhéanamh | OLED , PM-OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Blue) |
| Cúlsolas | self |
| Comhéadan | 8-bit |
| monaróir | Winstar |
| ainm samhail | WEO012832AS |
| méid scáileáin | 2.2 inch |
| cineál scáileáin | OLED , PM-OLED |
| uimhir picteilín | 128×32 59PPI |
| socrú | Rectangle |
| limistéar gníomhach(mm) | 55.018 × 13.098 (H×V) |
| imlíne (mm) | 62 × 24 × 2.35 (H×V×D) |
| limistéar bezel (mm) | 57.02 × 15.1 (H×V) |
| cóireáil | - |
| uillinn féachana | - |
| freagra | - |
| radharc maith ag | Symmetry |
| modh oibre | - |
| doimhneacht dath | Mono(Blue) |
| cúlsolas | self |
| mais | - |
| a úsáidtear le haghaidh | Handheld & PDA Instruments & Meters |
| ráta athnuachana | - |
| scáileán tadhaill | Without |
| Ic liosta tiománaí | Built-in COG SSD1305Z |
| cineál comhartha | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| soláthar voltais | 3.0V (Typ.) |
