| Uimhir Pháirt | WEO002002AW |
| Branda | Winstar |
| Méid | 2.9 |
| Iarratas | Instruments & Meters |
| Rún | 5×8 |
| Comhdhéanamh | OLED , PM-OLED |
| Gile | |
| CR | 2000:1 |
| Dathanna | Mono(White) |
| Cúlsolas | self |
| Comhéadan | 8-bit |
| monaróir | Winstar |
| méid scáileáin | 2.9 inch |
| uimhir charachtair | 20 characters × 2 lines 6PPI |
| char pháirc (mm) | 3.7×5.95 (H×V) |
| limistéar gníomhach(mm) | 73.52 × 11.52 (H×V) |
| limistéar bezel (mm) | 75.32 × 13.52 (H×V) |
| luminance | - |
| uillinn féachana | 88/88/88/88 |
| radharc maith ag | Symmetry |
| doimhneacht dath | Mono(White) |
| mais | - |
| ráta athnuachana | - |
| Ic liosta tiománaí | Built-in COG SSD1311M1Z |
| cineál comhartha | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| soláthar voltais | 3.3/5.0V (Typ.)(VDD) |
| ainm samhail | WEO002002AW |
| cineál scáileáin | OLED , PM-OLED |
| formáid charn | 5×8 dots |
| méid char (mm) | 3.22×5.57 (H×V) |

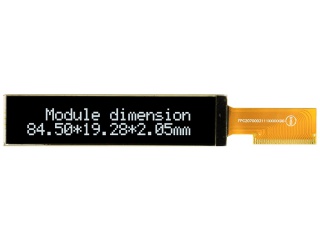

| imlíne (mm) | 84.5 × 19.2 × 2.15 (H×V×D) |
| cóireáil | - |
| cóimheas codarsnachta | 2000 : 1 (Typ.) (TM) |
| freagra | 0.01 (Typ.) ms |
| modh oibre | - |
| cúlsolas | self |
| a úsáidtear le haghaidh | Instruments & Meters |
| scáileán tadhaill | Without |
