| Uimhir Pháirt | WEO002002AL |
| Branda | Winstar |
| Méid | 2.9 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | 2000:1 |
| Dathanna | Mono(Yellow) |
| Cúlsolas | self |
| Comhéadan | 8-bit |
| branda | Winstar |
| Mionsamhail | WEO002002AL |
| méid trasnánach | 2.9 inch |
| cineál | PM-OLED, OLED |
| formáid charn | 5×8 dots |
| méid cló | 3.22×5.57 mm |
| páirc cló | 3.7×5.95 mm |
| limistéar gníomhach | 73.52(H)×11.52(V) mm |

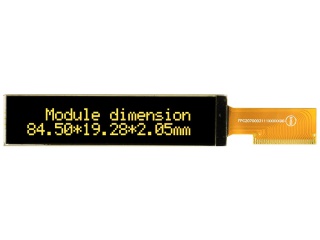

| imlíne dim. | 84.5(H)×19.2(V) ×2.15(D) mm |
| limistéar bezel | 75.32(H)×13.52(V) mm |
| cóireáil | - |
| luminance | - |
| cóimheas codarsnachta | 2000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 0.01 (Typ.) |
| uillinn féachana | 88/88/88/88 |
| modh oibriúcháin | - |
| dath tacaíochta | Mono(Yellow) |
| foinse solais | self |
| meáchan | - |
| deartha le haghaidh | Instruments & Meters |
| ráta fhráma | - |
| painéal tadhaill | Without |
| sonraí d-ic | COG Built-in SSD1311M1Z |
| cineál comhéadan | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| soláthar leictreachas | 3.3/5.0V (Typ.)(VDD) |
