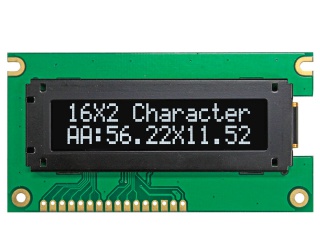

| Uimhir Pháirt | WEO001602GW |
| Branda | Winstar |
| Méid | 2.3 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | OLED , PM-OLED |
| Gile | |
| CR | 2000:1 |
| Dathanna | Mono(White) |
| Cúlsolas | self |
| Comhéadan | 8-bit |
| monaróir | Winstar |
| ainm samhail | WEO001602GW |
| méid scáileáin | 2.3 inch |
| cineál scáileáin | OLED , PM-OLED |
| uimhir charachtair | 16 characters × 2 lines 7PPI |
| formáid charn | 5×8 dots |
| char pháirc (mm) | 3.55×5.95 (H×V) |
| méid char (mm) | 2.97×5.57 (H×V) |
| limistéar gníomhach(mm) | 56.22 × 11.52 (H×V) |
| imlíne (mm) | 79 × 44 × 9.67 (H×V×D) |
| limistéar bezel (mm) | 58.22 × 13.52 (H×V) |
| cóireáil | - |
| luminance | - |
| cóimheas codarsnachta | 2000 : 1 (Typ.) (TM) |
| uillinn féachana | 88/88/88/88 |
| freagra | 0.01 (Typ.) ms |
| radharc maith ag | Symmetry |
| modh oibre | - |
| doimhneacht dath | Mono(White) |
| cúlsolas | self |
| mais | - |
| a úsáidtear le haghaidh | Instruments & Meters |
| ráta athnuachana | - |
| scáileán tadhaill | Without |
| Ic liosta tiománaí | Built-in COG SSD1311M1Z |
| cineál comhartha | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| soláthar voltais | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
