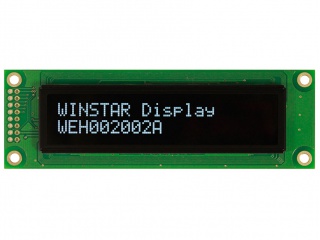

| Uimhir Pháirt | WEH002002AW |
| Branda | Winstar |
| Méid | 3.1 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | |
| Dathanna | Mono(White) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda | Winstar |
| Mionsamhail | WEH002002AW |
| méid trasnánach | 3.1 inch |
| cineál | PM-OLED, OLED |
| formáid charn | 5×8 dots |
| méid cló | 3.2×5.55 mm |
| páirc cló | 3.9×6.3 mm |
| limistéar gníomhach | 77.3(H)×11.85(V) mm |
| imlíne dim. | 116(H)×37(V) ×9.8(D) mm |
| limistéar bezel | 85(H)×18.6(V) mm |
| cóireáil | - |
| treo amharc | Symmetry |
| am freagartha | - |
| uillinn féachana | - |
| modh oibriúcháin | - |
| dath tacaíochta | Mono(White) |
| foinse solais | self |
| meáchan | - |
| deartha le haghaidh | Instruments & Meters |
| ráta fhráma | - |
| painéal tadhaill | Without |
| sonraí d-ic | COB Built-in WS0010 |
| cineál comhéadan | CPU/SPI , 16 pins Pad |
| soláthar leictreachas | 5.0V (Typ.) |
