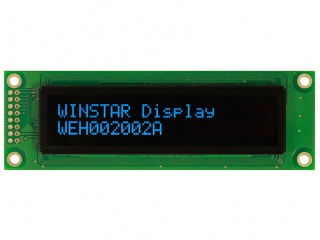

| Uimhir Pháirt | WEH002002AB |
| Branda | Winstar |
| Méid | 3.1 |
| Iarratas | Instruments & Me |
| Rún | 20×26 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Blue) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda painéil | Winstar |
| múnla painéil | WEH002002AB |
| méid an phainéil | 3.1" |
| cineál painéil | PM-OLED, OLED |
| formáid taispeána | 20 characters × 2 lines, 6PPI |
| cruth cló | 5×8 dots |
| méid carachtar | 3.2×5.55(W×H) mm |
| páirc carachtar | 3.9×6.3(W×H) mm |
| limistéar taispeána | 77.3(W)×11.85(H) mm |
| oscailt bezel | 85(W)×18.6(H) mm |
| méid imlíne | 116(W)×37(H) ×9.8(D) mm |
| dromchla | - |
| uillinn féachana | - |
| mód taispeána | - |
| radharc is fearr ar | Symmetry |
| am freagartha | - |
| dathanna a thaispeáint | Mono(Blue) |
| cineál lampa | self |
| minicíocht | - |
| scáileán tadhaill | Without |
| Tiománaí ic | COB Built-in WS0010 |
| meáchan painéal | - |
| iarratas | Instruments & Meters |
| comhéadan comhartha | CPU/SPI , 16 pins Pad |
| voltas ionchuir | 5.0V (Typ.) |
| AMFN888 | Samsung | 3.1 | 480×800 |
| EL160.120.39 | Lumineq | 3.1 | 160×120 |
| EL160.120.39 CC | Lumineq | 3.1 | 160×120 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
