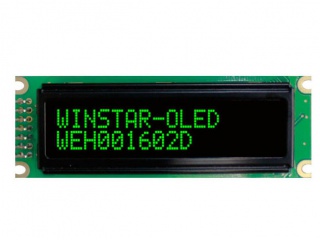

| Uimhir Pháirt | WEH001602DG |
| Branda | Winstar |
| Méid | 2.3 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Green) |
| Cúlsolas | self |
| Comhéadan | 8-bit |
| branda | Winstar |
| Mionsamhail | WEH001602DG |
| méid trasnánach | 2.3 inch |
| cineál | PM-OLED, OLED |
| formáid charn | 5×8 dots |
| méid cló | 2.95×5.55 mm |
| páirc cló | 3.6×6.3 mm |
| limistéar gníomhach | 56.95(H)×11.85(V) mm |
| imlíne dim. | 85(H)×30(V) ×10(D) mm |
| limistéar bezel | 66(H)×16(V) mm |
| cóireáil | - |
| treo amharc | Symmetry |
| am freagartha | - |
| uillinn féachana | - |
| modh oibriúcháin | - |
| dath tacaíochta | Mono(Green) |
| foinse solais | self |
| meáchan | - |
| deartha le haghaidh | Instruments & Meters |
| ráta fhráma | - |
| painéal tadhaill | Without |
| sonraí d-ic | COB Built-in WS0010 |
| cineál comhéadan | 8-bit 6800/8080 parallel , 14 pins Pad |
| soláthar leictreachas | 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
