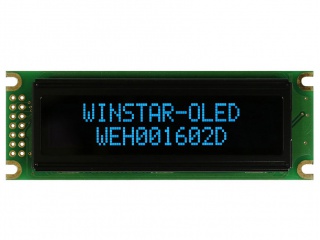

| Uimhir Pháirt | WEH001602DB |
| Branda | Winstar |
| Méid | 2.3 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | OLED, PM-OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Blue) |
| Cúlsolas | self |
| Comhéadan | |
| monaróir | Winstar |
| ainm samhail | WEH001602DB |
| méid scáileáin | 2.3 inch |
| cineál scáileáin | OLED, PM-OLED |
| uimhir charachtair | 16 characters × 2 lines 7PPI |
| formáid charn | 5×8 dots |
| char pháirc (mm) | 3.6×6.3 (H×V) |
| méid char (mm) | 2.95×5.55 (H×V) |
| limistéar gníomhach(mm) | 56.95 × 11.85 (H×V) |
| imlíne (mm) | 85 × 30 × 10 (H×V×D) |
| limistéar bezel (mm) | 66 × 16 (H×V) |
| cóireáil | - |
| uillinn féachana | - |
| freagra | - |
| radharc maith ag | Symmetry |
| modh oibre | - |
| doimhneacht dath | Mono(Blue) |
| cúlsolas | self |
| mais | - |
| a úsáidtear le haghaidh | Instruments & Meters |
| ráta athnuachana | - |
| scáileán tadhaill | Without |
| 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
