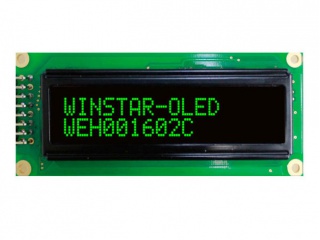

| Uimhir Pháirt | WEH001602CG |
| Branda | Winstar |
| Méid | 2.3 |
| Iarratas | Instruments & Meters |
| Rún | 16×27 |
| Comhdhéanamh | PM-OLED , OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Green) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda painéil | Winstar |
| méid an phainéil | 2.3" |
| formáid taispeána | 16 characters × 2 lines, 7PPI |
| méid carachtar | 2.95×5.55(W×H) mm |
| limistéar taispeána | 56.95(W)×11.85(H) mm |
| méid imlíne | 85(W)×36(H) ×10(D) mm |
| uillinn féachana | - |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | Mono(Green) |
| minicíocht | - |
| Tiománaí ic | COB Built-in WS0010 |
| meáchan painéal | - |
| comhéadan comhartha | CPU/SPI , 15 pins Pad |
| voltas ionchuir | 5.0V (Typ.) |
| múnla painéil | WEH001602CG |
| cineál painéil | PM-OLED , OLED |
| cruth cló | 5×8 dots |
| páirc carachtar | 3.6×6.3(W×H) mm |
| oscailt bezel | 66(W)×16(H) mm |
| dromchla | - |
| mód taispeána | - |
| am freagartha | - |
| cineál lampa | self |
| scáileán tadhaill | Without |
| iarratas | Instruments & Meters |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
