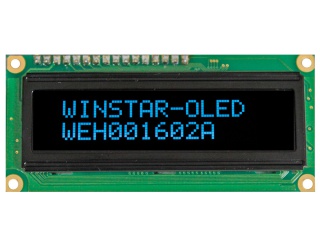

| Uimhir Pháirt | WEH001602AS |
| Branda | Winstar |
| Méid | 2.3 |
| Iarratas | Instruments & Me |
| Rún | 5×8 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | 2000:1 |
| Dathanna | Mono(Blue) |
| Cúlsolas | self |
| Comhéadan | |
| branda | Winstar |
| Mionsamhail | WEH001602AS |
| méid trasnánach | 2.3 inch |
| cineál | PM-OLED, OLED |
| formáid charn | 5×8 dots |
| méid cló | 2.95×5.55 mm |
| páirc cló | 3.6×6.3 mm |
| limistéar gníomhach | 56.95(H)×11.85(V) mm |
| imlíne dim. | 80(H)×36(V) ×10(D) mm |
| limistéar bezel | 66(H)×16(V) mm |
| cóireáil | - |
| luminance | - |
| cóimheas codarsnachta | 2000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 0.01 (Typ.) |
| uillinn féachana | - |
| modh oibriúcháin | - |
| dath tacaíochta | Mono(Blue) |
| foinse solais | self |
| meáchan | - |
| deartha le haghaidh | Instruments & Meters |
| ráta fhráma | - |
| painéal tadhaill | Without |
| Operating Temperature: -40 ~ 80 °C - |
