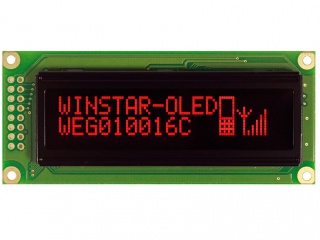

| Uimhir Pháirt | WEG010016CW |
| Branda | Winstar |
| Méid | 2.4 |
| Iarratas | Instruments & Me |
| Rún | 100×16 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | |
| Dathanna | Mono(White) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda painéil | Winstar |
| múnla painéil | WEG010016CW |
| méid an phainéil | 2.4" |
| cineál painéil | PM-OLED, OLED |
| taifeach | 100×16, 42PPI |
| formáid picteilín | Rectangle |
| limistéar taispeána | 59.95(W)×11.15(H) mm |
| oscailt bezel | 66(W)×16(H) mm |
| méid imlíne | 85(W)×36(H) ×10(D) mm |
| dromchla | - |
| uillinn féachana | - |
| mód taispeána | - |
| radharc is fearr ar | Symmetry |
| am freagartha | - |
| dathanna a thaispeáint | Mono(White) |
| cineál lampa | self |
| minicíocht | - |
| scáileán tadhaill | Without |
| Tiománaí ic | COG Built-in WS0010 |
| meáchan painéal | - |
| iarratas | Instruments & Meters |
| comhéadan comhartha | CPU/SPI , 16 pins Pad |
| voltas ionchuir | 5.0V (Typ.) |
