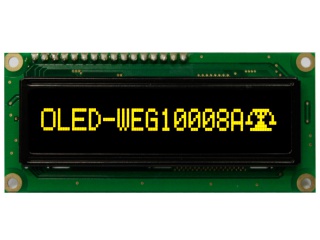

| Uimhir Pháirt | WEG010008AL |
| Branda | Winstar |
| Méid | 2.4 |
| Iarratas | Instruments & Me |
| Rún | 100×8 |
| Comhdhéanamh | OLED, PM-OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Yellow) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| monaróir | Winstar |
| ainm samhail | WEG010008AL |
| méid scáileáin | 2.4 inch |
| cineál scáileáin | OLED, PM-OLED |
| uimhir picteilín | 100×8 42PPI |
| socrú | Rectangle |
| limistéar gníomhach(mm) | 59.95 × 6.35 (H×V) |
| imlíne (mm) | 80 × 36 × 10 (H×V×D) |
| limistéar bezel (mm) | 66.0 × 16.0 (H×V) |
| cóireáil | - |
| uillinn féachana | - |
| freagra | - |
| radharc maith ag | Symmetry |
| modh oibre | - |
| doimhneacht dath | Mono(Yellow) |
| cúlsolas | self |
| mais | - |
| a úsáidtear le haghaidh | Instruments & Meters |
| ráta athnuachana | - |
| scáileán tadhaill | Without |
| Ic liosta tiománaí | Built-in COB WS0010 |
| cineál comhartha | CPU/SPI , Pad 16 pins |
| soláthar voltais | 5.0V (Typ.) |
