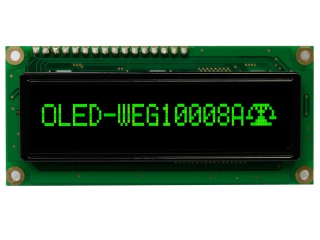

| Uimhir Pháirt | WEG010008AG |
| Branda | Winstar |
| Méid | 2.4 |
| Iarratas | Instruments & Me |
| Rún | 100×8 |
| Comhdhéanamh | PM-OLED, OLED |
| Gile | |
| CR | |
| Dathanna | Mono(Green) |
| Cúlsolas | self |
| Comhéadan | CPU/SPI |
| branda | Winstar |
| Mionsamhail | WEG010008AG |
| méid trasnánach | 2.4 inch |
| cineál | PM-OLED, OLED |
| formáid picteilín | 100×8 42PPI |
| cumraíocht | Rectangle |
| limistéar gníomhach | 59.95(H)×6.35(V) mm |
| imlíne dim. | 80(H)×36(V) ×10(D) mm |
| limistéar bezel | 66.0(H)×16.0(V) mm |
| cóireáil | - |
| treo amharc | Symmetry |
| am freagartha | - |
| uillinn féachana | - |
| modh oibriúcháin | - |
| dath tacaíochta | Mono(Green) |
| foinse solais | self |
| meáchan | - |
| deartha le haghaidh | Instruments & Meters |
| ráta fhráma | - |
| painéal tadhaill | Without |
| sonraí d-ic | COB Built-in WS0010 |
| cineál comhéadan | CPU/SPI , 16 pins Pad |
| soláthar leictreachas | 5.0V (Typ.) |
