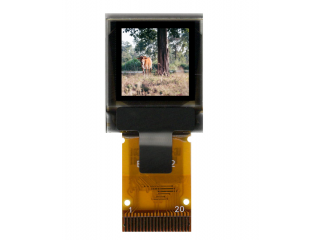

| Uimhir Pháirt | UG-6464TDDBG01 |
| Branda | WiseChip |
| Méid | 0.60 |
| Iarratas | - |
| Rún | 64×64 |
| Comhdhéanamh | PM-OLED , OLED |
| Gile | |
| CR | 10000:1 |
| Dathanna | 65K |
| Cúlsolas | self |
| Comhéadan | 4-wire |
| branda painéil | WiseChip |
| méid an phainéil | 0.60" |
| taifeach | 64(RGB)×64, 151PPI |
| limistéar taispeána | 10.73(W)×10.73(H) mm |
| méid imlíne | 15(W)×17.5(H) ×1.3(D) mm |
| gile | 200 cd/m² (Typ.) |
| uillinn féachana | - |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 65K 60% NTSC |
| minicíocht | - |
| Tiománaí ic | COG Built-in SSD1357 |
| meáchan painéal | 0.66±0.06g |
| comhéadan comhartha | 4-wire SPI , 20 pins FPC |
| voltas ionchuir | 3.0/12.0V (Typ.)(VDD/VCC) |
| timpeallacht | Operating Temp.: -40 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
| múnla painéil | UG-6464TDDBG01 |
| cineál painéil | PM-OLED , OLED |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 11.73(W)×11.73(H) mm |
| dromchla | - |
| cóimheas codarsnachta | 10000:1 (Typ.) (TM) |
| mód taispeána | - |
| am freagartha | - |
| cineál lampa | self , 10K hours |
| scáileán tadhaill | Without |
