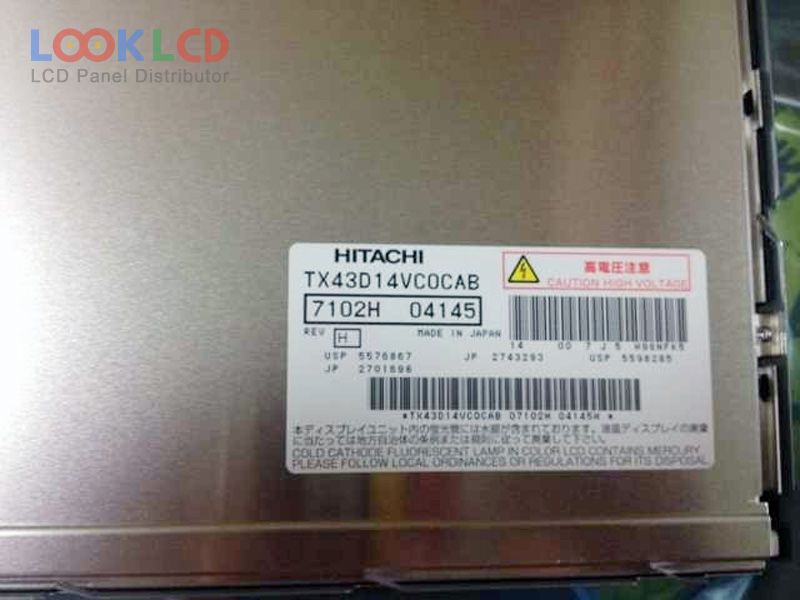

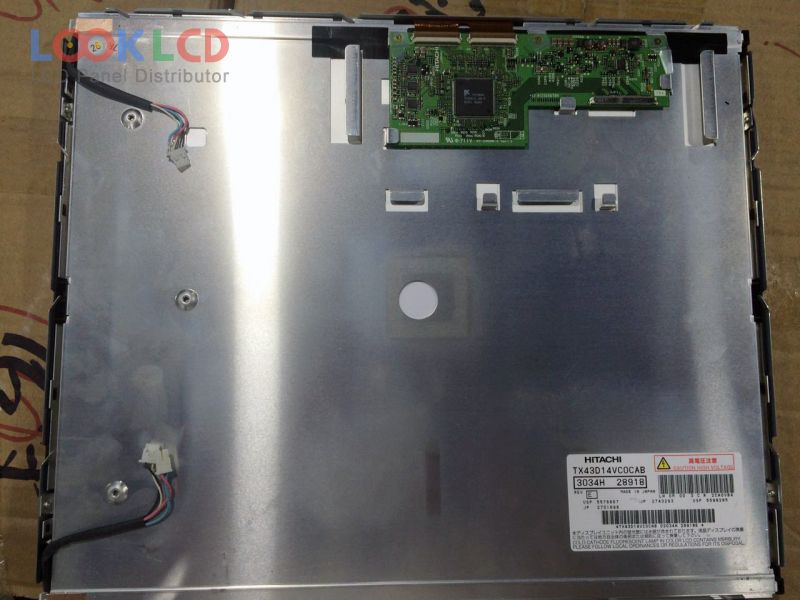

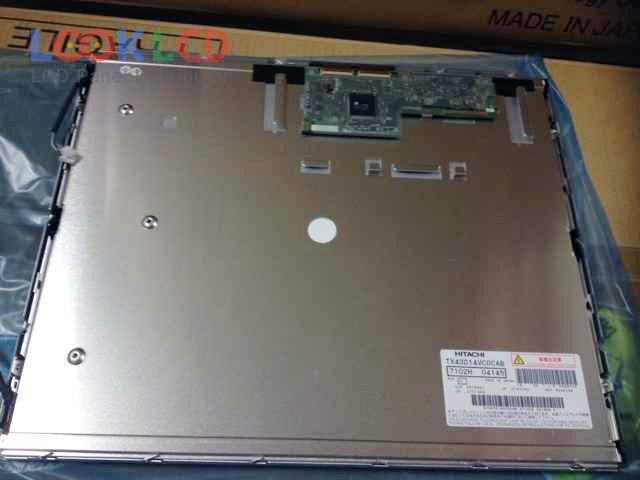

| Uimhir Pháirt | TX43D14VC0CAB |
| Branda | KOE |
| Méid | 17.0 |
| Iarratas | DMPC |
| Rún | 1280×1024 |
| Comhdhéanamh | LCM |
| Gile | 230 |
| CR | 400:1 |
| Dathanna | 16.7M |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |
| branda painéil | HITACHI |
| múnla painéil | TX43D14VC0CAB |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 17.0 inch |
| taifeach | 1280(RGB)×1024 , SXGA |
| mód taispeána | IPS-Pro, Normally Black, Transmissive |
| limistéar gníomhach | 337.92×270.336 mm |
| imlíne | 368×306 mm |
| dromchla | Antiglare |
| gile | 230 cd/m² (Typ.) |
| cóimheas codarsnachta | 400:1 (Typ.) |
| dathanna a thaispeáint | 16.7M (6-bit + Hi-FRC) |
| am freagartha | 20/20 (Typ.)(Tr/Td) |
| uillinn féachana | |
| minicíocht | 60Hz |
| cineál lampa | 4 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (2 ch, 8-bit), 30 pins |
| voltas ionchuir | 5.0V (Typ.) |
| iarratas | DMPC |
