| Uimhir Pháirt | TX41D97VC1HAA |
| Branda | KOE |
| Méid | 16.1 |
| Iarratas | NBPC |
| Rún | 1400×1050 |
| Comhdhéanamh | LCM |
| Gile | 330 |
| CR | 600:1 |
| Dathanna | 262K |
| Cúlsolas | CCFL |
| Comhéadan | LVDS |

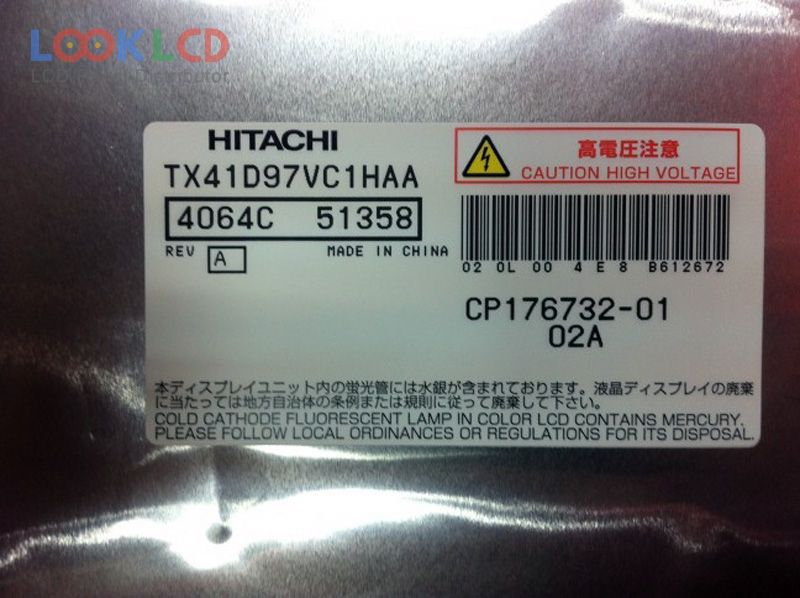

| branda painéil | HITACHI |
| múnla painéil | TX41D97VC1HAA |
| cineál painéil | a-Si TFT-LCD , LCM |
| méid an phainéil | 16.1 inch |
| taifeach | 1400(RGB)×1050 , SXGA+ |
| mód taispeána | TN, Normally White, Transmissive |
| limistéar gníomhach | 326.55×244.913 mm |
| stíl cruth | Wedge (PCBA Bent, Depth ≥5.2mm) |
| dromchla | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| gile | 330 cd/m² (Typ.) |
| cóimheas codarsnachta | 600:1 (Typ.) |
| dathanna a thaispeáint | 262K (6-bit) |
| am freagartha | 30/20 (Typ.)(Tr/Td) |
| uillinn féachana | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| minicíocht | 60Hz |

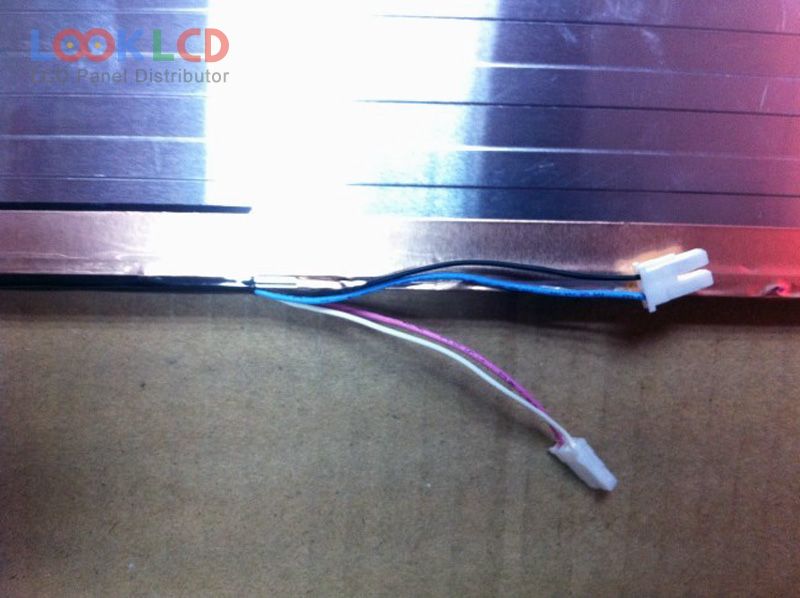

| cineál lampa | 2 pcsCCFLWithout Driver |
| comhéadan comhartha | LVDS (2 ch, 6-bit), 30 pins |
| voltas ionchuir | 3.3V (Typ.) |
| iarratas | NBPC |
