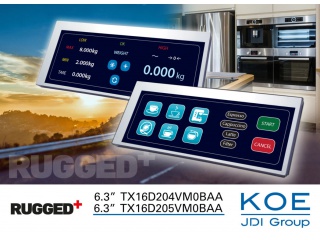

| Uimhir Pháirt | TX16D204VM0BAA |
| Branda | KOE |
| Méid | 6.3 |
| Iarratas | Industrial |
| Rún | 800×280 |
| Comhdhéanamh | a-Si TFT-LCD , LCM |
| Gile | |
| CR | 1000:1 |
| Dathanna | 262K |
| Cúlsolas | 3S3P |
| Comhéadan | CMOS |
| branda painéil | KOE |
| méid an phainéil | 6.3" |
| taifeach | 800(RGB)×280, 135PPI |
| limistéar taispeána | 150(W)×52.5(H) mm |
| méid imlíne | 167(W)×69(H) ×9.5(D) mm |
| gile | 500 cd/m² (Typ.) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| radharc is fearr ar | Symmetry |
| dathanna a thaispeáint | 262K 52% NTSC |
| minicíocht | 60Hz |
| meáchan painéal | 107g (Typ.) |
| comhéadan comhartha | CMOS (1 ch, 6-bit) , 50 pins FPC |
| voltas ionchuir | 3.3V (Typ.) |
| timpeallacht | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| múnla painéil | TX16D204VM0BAA |
| cineál painéil | a-Si TFT-LCD , LCM |
| formáid picteilín | RGB Vertical Stripe |
| oscailt bezel | 153(W)×55.5(H) mm |
| dromchla | - |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| mód taispeána | IPS, Normally Black, Transmissive |
| am freagartha | 40 (Typ.)(Tr+Td) |
| cineál lampa | 3S3P WLED , 50K hours , Without Driver |
| scáileán tadhaill | Without |
| iarratas | Industrial |
