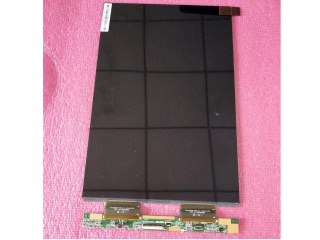

| Uimhir Pháirt | TV106WAB-NS0 |
| Branda | BOE |
| Méid | 10.6 |
| Iarratas | Pad & Tablet |
| Rún | 1280×1920 |
| Comhdhéanamh | a-Si TFT-LCD, CELL |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | No |
| Comhéadan | |
| branda | BOE |
| Mionsamhail | TV106WAB-NS0 |
| méid trasnánach | 10.6 inch |
| cineál | a-Si TFT-LCD, CELL |
| formáid picteilín | 1280(RGB)×1920 218PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 148.992(H)×223.488(V) mm |
| imlíne dim. | 153.392(H)×232.688(V) ×0.79(D) mm |
| limistéar bezel | - |
| cóireáil | Hard coating (3H) |
| luminance | 0 cd/m² |
| cóimheas codarsnachta | 900:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 25 (Typ.)(Tr+Td) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| modh oibriúcháin | ADS, Normally Black, Transmissive |
| tiús pláta | 0.25+0.25 mm |
| tarchur | - |
| dath tacaíochta | 16.7M 71% NTSC |
| foinse solais | No B/L , W/O Driver |
| meáchan | 62.0g (Max.) |
| deartha le haghaidh | Pad & Tablet |
| ráta fhráma | 60Hz |
| painéal tadhaill | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
