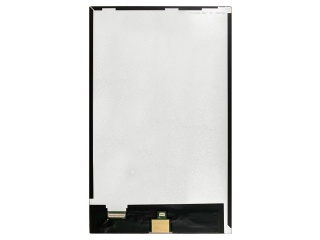

| Uimhir Pháirt | TV101WUM-NM1 |
| Branda | BOE |
| Méid | 10.1 |
| Iarratas | Pad & Tablet |
| Rún | 1200×1920 |
| Comhdhéanamh | LCM , a-Si TFT-LCD |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | 8S4P |
| Comhéadan | MIPI |
| monaróir | BOE |
| ainm samhail | TV101WUM-NM1 |
| méid scáileáin | 10.1 inch |
| cineál scáileáin | LCM , a-Si TFT-LCD |
| uimhir picteilín | 1200(RGB)×1920 (WUXGA) 225PPI |
| socrú | RGB Vertical Stripe |
| limistéar gníomhach(mm) | 135.36 × 216.576 (H×V) |
| imlíne (mm) | 143 × 227.926 × 4.4 (H×V×D) |
| limistéar bezel (mm) | - |
| cóireáil | Antiglare, Hard coating, Antireflection |
| luminance | - |
| cóimheas codarsnachta | 900 : 1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| freagra | 30 (Typ.)(Tr+Td) ms |
| radharc maith ag | Symmetry |
| modh oibre | ADS, Normally Black, Transmissive |
| doimhneacht dath | 16.7M |
| cúlsolas | 8S4P WLED , 30K hours , No Driver |
| mais | 145g (Max.) |
| a úsáidtear le haghaidh | Pad & Tablet |
| ráta athnuachana | 60Hz |
| scáileán tadhaill | Without |
| cineál comhartha | MIPI (4 data lanes) Connector |
| soláthar voltais | 3.3V (Typ.)(VDD) |
| uas. rátálacha | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| LP101WH4-SLAA | LG Display | 10.1 | 1366×768 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
