| Uimhir Pháirt | TV080WXM-LL3 |
| Branda | BOE |
| Méid | 8.0 |
| Iarratas | Pad & Tablet |
| Rún | 800×1280 |
| Comhdhéanamh | a-Si TFT-LCD, Assemb |
| Gile | |
| CR | 1000:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | MIPI |
| branda | BOE |
| Mionsamhail | TV080WXM-LL3 |
| méid trasnánach | 8.0 inch |
| cineál | a-Si TFT-LCD, Assembly |
| formáid picteilín | 800(RGB)×1280 [WXGA] 188PPI |
| cumraíocht | RGB Vertical Stripe |
| limistéar gníomhach | 107.64(H)×172.224(V) mm |
| imlíne dim. | 116.9(H)×194.17(V) ×5.35(D) mm |
| limistéar bezel | - |
| cóireáil | Clear, Hard coating |
| luminance | 350 cd/m² (Typ.) |
| cóimheas codarsnachta | 1000:1 (Typ.) (TM) |
| treo amharc | Symmetry |
| am freagartha | 30(Typ.)(Tr+Td) |
| uillinn féachana | 80/80/80/80 (Typ.)(CR≥10) |
| modh oibriúcháin | ADS, Normally Black, Transmissive |
| dath tacaíochta | 16.7M 60% NTSC |
| foinse solais | WLED [5S4P] , W/O Driver |
| meáchan | 150g (Typ.) |
| deartha le haghaidh | Pad & Tablet |
| ráta fhráma | 60Hz |
| painéal tadhaill | PCAP |

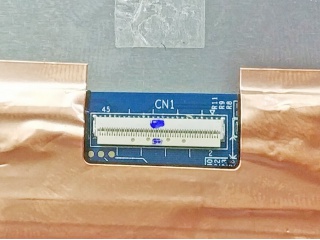

| cineál comhéadan | MIPI (4 data lanes) , 45 pins Connector |
| soláthar leictreachas | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| timpeallacht | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
