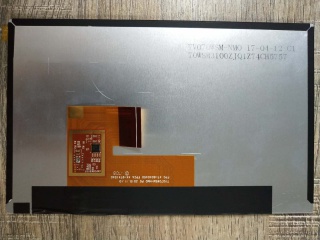

| Uimhir Pháirt | TV070WSM-NM0 |
| Branda | BOE |
| Méid | 7.0 |
| Iarratas | Pad & Tablet |
| Rún | 1024×600 |
| Comhdhéanamh | a-Si TFT-LCD, LCM |
| Gile | |
| CR | 900:1 |
| Dathanna | 16.7M |
| Cúlsolas | WLED |
| Comhéadan | MIPI |
| branda painéil | BOE |
| múnla painéil | TV070WSM-NM0 |
| méid an phainéil | 7.0" |
| cineál painéil | a-Si TFT-LCD, LCM |
| taifeach | 1024(RGB)×600, WSVGA, 169PPI |
| formáid picteilín | RGB Vertical Stripe |
| limistéar taispeána | 153.6(W)×90(H) mm |
| oscailt bezel | - |
| méid imlíne | 161.16(W)×100.97(H) ×4.8(D) mm |
| dromchla | Glare (Haze 0%), Hard coating (3H) |
| gile | 450 cd/m² (Typ.) |
| cóimheas codarsnachta | 900:1 (Typ.) (TM) |
| uillinn féachana | 85/85/85/85 (Typ.)(CR≥10) |
| mód taispeána | ADS, Normally Black, Transmissive |
| radharc is fearr ar | Symmetry |
| am freagartha | 30 (Typ.)(Tr+Td) |
| dathanna a thaispeáint | 16.7M 50% NTSC |
| cineál lampa | WLED , Without Driver |
| minicíocht | 60Hz |
| scáileán tadhaill | Without |
| meáchan painéal | 90.0g (Max.) |
| iarratas | Pad & Tablet |
| comhéadan comhartha | MIPI (4 data lanes) , 40 pins Connector |
| voltas ionchuir | 1.8/3.3/9/19/-7V (Typ.)(VDD1/VDD3/AVDD/VGH/VGL) |
| timpeallacht | Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -40 ~ 85 °C |
| 70WVW3T | SII | 7.0 | 800×480 |
| A070SN02 V0 CELL | AUO | 7.0 | 800×600 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
